Molex 0430450615

mpn43045-0615
brandname: Molex
manufacturername: Molex

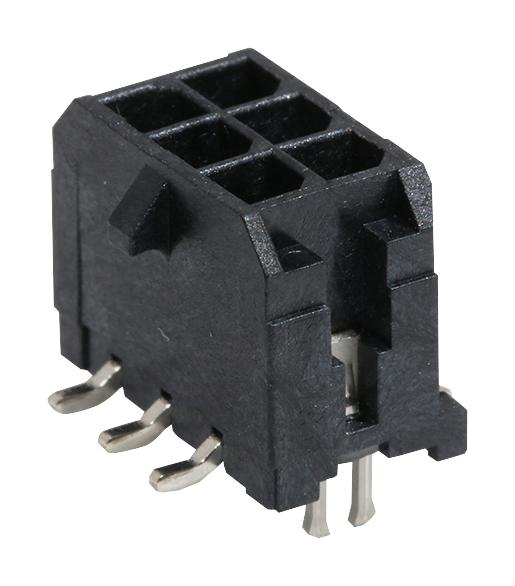

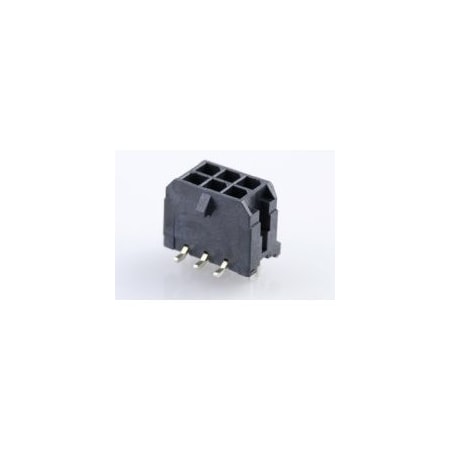

0430450615 Conn Power HDR 6 POS 3mm Solder ST SMD 6 Terminal 1 Port Micro-Fit 3.0 T/R, (25 Items)

Brand: Molex
PartNumber: 0430450615
Model: 0430450615
Manufacturer: Molex
Label: Molex

Attributes

Key	Value
Alternate Part No.	538-43045-0615
Applications	General Purpose, Medica.
Base Product Number	043045
Brand	Molex
Category	Connectors, Interconnec.
Color	Black
Connector Type	Header
Contact Finish	Tin Plated
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	60.0?in (1.52?m)
Contact Finish Thicknes.	-
Contact Length - Mating	-
Contact Length - Post	-
Contact Material	Brass
Contact Plating	Tin
Contact Plating Thickne.	0.254 ?m
Contact Shape	Square
Contact Type	Male Pin
Current Rating	8.5 A, 5 A
Current Rating (Amps)	8A
Family Name	Micro-Fit 3.0
Fastening Type	Locking Ramp
Features	Glow-Wire Capable, Boar.
Flammability Rating	UL 94V-0
Hole Center to Center	3 mm
Housing Material	Thermoplastic
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.390" (9.91mm)
Insulation Material	Liquid Crystal Polymer .
Manufacturer	Molex
Manufacturer Part No.	43045-0615
Mated Stacking Heights	-
Material	High Temperature Thermo.
Material Flammability R.	UL94 V-0
Max. Temp.	260?C
Max. Voltage	600V
Mfr	Molex
Mounting Angle	Vertical
Mounting Type	Surface Mount
Number of Circuits	6
Number of Contacts	6
Number of Positions	6
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-40?C ~ 105?C
Overall Contact Length	-
Package	Tape & Reel (TR)
Package Quantity	1
Packaging	Reel
Part # Aliases	0430450615
Part Status	Active
Pitch	3 mm
Pitch - Mating	0.118" (3.00mm)
Plating Material	Tin
Product Category	Headers & Wire Housings
Product Type	Header Assemblies
Row Spacing	6.86 mm
Row Spacing - Mating	0.118" (3.00mm)
Series	Micro-Fit 3.0 43045, 43.
Shrouding	Shrouded - 4 Wall
Standards	CSA Certified; UL E29179
Style	Board to Cable/Wire
Terminal Finish	Tin Plated
Terminal Type	Surface Mount
Termination	Solder
Termination Style	SMD
Tradename	Micro-Fit 3.0
Type	Pin Header
Voltage Rating	600V, 600 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
Power and Signal Group	0430450615	1.6185	1800	25		Molex	1.6185 @ 1800
Newark	02AH7318	1.69	200	25		MOLEX	1.69 @ 200
RS Delivers	151-2680	2.202	1	25		Molex	2.202 @ 25
Radwell	43045-0615	2.5	1800	25		MOLEX	2.5 @ 1800
us.rs-online.com	71456745	2.75	1	25		Molex Incorporated	2.75 @ 25
Digi-Key	3044138	2.762	100	25		Molex	2.762 @ 25
swatee.com	43045-0615	4.19	1	239		Molex	4.19 @ 25
AmazonTP	B07QYCLFS3	127.82	1	25	1	Molex	127.82 @ 25
Zoro	G7803902	4950.0	1	25		Molex	4950.0 @ 25
