Molex 46437-3001

B00GQRTTHQ

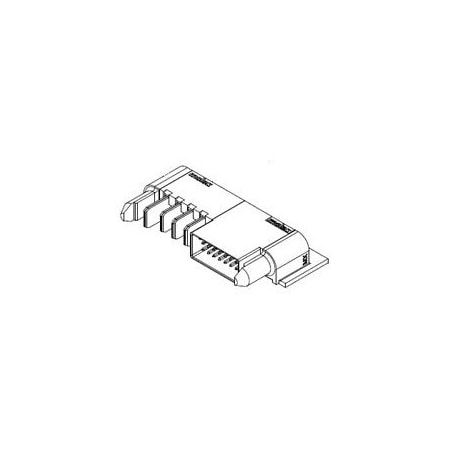

Molex / Waldom 46437-3001 Connector Power

Molex / Waldom 46437-3001 Connector Powerzoom

Attributes

Key Value
(p)ower-(s)ignal Config.4p - 24s
Alternate Part No.538-46437-3001
BrandMolex
Circuits (Loaded)28
Circuits (maximum)28
ColorBlack
Color - ResinBlack
Contact MaterialCopper
Contact PlatingGold
Current Rating2.5 A, 60 A
Durability (mating cycl.200
Family NameEXTreme Ten60Power
Flammability94V-0
Guide to Mating PartYes
Hood OrientationRight Angle
Housing MaterialThermoplastic
ManufacturerMolex
Manufacturer Part No.46437-3001
Mated Height18.00mm
Material - MetalCopper
Material - Plating Mati.Gold
Material - Plating Term.Tin
Material - ResinHigh Temperature Thermo.
Number of Circuits28
Number of Positions28
Number of Rows1, 3, 1
OrientationRight Angle
PackagingTray
Part # Aliases0464373001
PC Tail Length2.84mm
PCB LocatorYes
PCB Thickness - Recomme.1.58mm
Pitch7.5 mm, 2.54 mm, 5.5 mm
Pitch - Mating Interface2.54mm, 5.50mm
Plating MaterialGold
Polarized to Mating PartYes
Polarized to PCBYes
Product CategoryHeavy Duty Power Connec.
Series46437 Series, 46437
Temperature Range - Ope.-40? to +105?C
Termination Interface: .Through Hole
Termination StyleThrough Hole
TradenameEXTreme Ten50Power
ULE29179
Voltage - Maximum600V AC / 250V DC
Voltage Rating600 VAC/250 VDC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomMOLEX 46437-30015.54103270MOLEX5.54 @ 10
thumbzoomjensentools.com101903657.021In StockMolex7.02 @ 1
Newark22T84847.95500In StockMOLEX7.95 @ 500
us.rs-online.com714633339.971In StockMolex Incorporated9.97 @ 1
thumbzoomswatee.com46437-300116.561In StockMolex16.56 @ 1
thumbzoomZoroG207766891.910In StockMolex91.9 @ 10
