502382-0670

mpn502382-0670
brandname: Molex
manufacturername: Molex

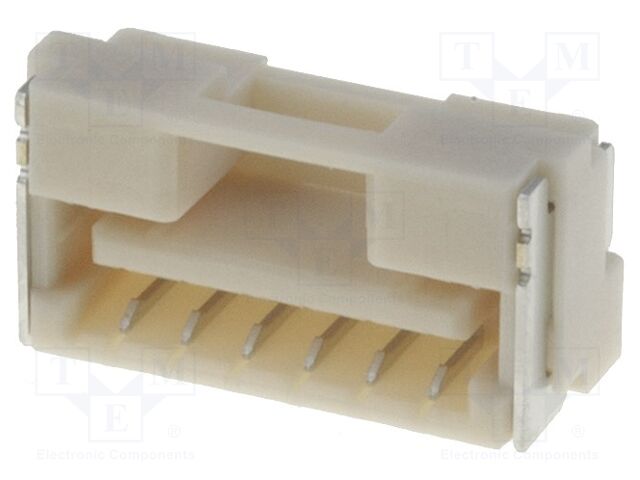

MOLEX 502382-0670 WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 1.25MM (1 piece)

PartNumber: 502382-0670
PackageQuantity: 1
Manufacturer: MOLEX
Label: MOLEX

Attributes

Key	Value
Alternate Mfr Part Numb.	502382-0670
Alternate Part No.	538-502382-0670
Applications	Automotive, General Pur.
ASIN	B00OVEOKNY
Base Product Number	502382
Brand	Molex
Category	Connectors, Interconnec.
Circuits (Loaded)	6
Circuits (maximum)	6
Color	Natural
Color - Resin	Natural
Connector	Socket
Connector pinout layout	1x6
Connector series	CLIK-Mate
Connector Type	Receptacle
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	39.4?in (1.00?m)
Contact Finish Thicknes.	39.4?in (1.00?m)
Contact Gender	Socket (Female)
Contact Length - Post	-
Contact Material	Copper Alloy
Contact Plating	Tin
Contact Shape	-
Contact Type	Forked
Contacts pitch	1.25mm
Current - Maximum per C.	1.0A
Current Rating	1 A
Current Rating (Amps)	1A
Description	CONN RCPT 6POS 0.049 TI.
Detailed Description	6 Position Receptacle C.
Digi-Key Part Number	WM4783TR-ND - Tape & Re.
Durability (mating cycl.	30
Electrical mounting	SMT
Family Name	CLIK-Mate
Fastening Type	Latch Holder
Features	Solder Retention
Guide to Mating Part	Yes
Housing Material	Thermoplastic
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.173" (4.40mm)
Insulation Material	Resin
Item model number	502382-0670
Keying to Mating Part	Yes
Kind of connector	male
Lock to Mating Part	Yes
Locking system	latch
Manufacturer	Molex
Manufacturer Part No.	502382-0670
Manufacturer Product Nu.	5023820670
Manufacturer Standard L.	15 Weeks
Mated Height	7.80mm
Mated Stacking Heights	-
Material - Metal	Copper Alloy
Material - Plating Mati.	Tin
Material - Plating Term.	Tin
Material - Resin	High Temperature Thermo.
Material Flammability R.	UL94 V-0
Max. voltage	50V
Maximum current	1A
Mfr	Molex
Mounting Angle	Vertical
Mounting Style	Wire
Mounting Type	Surface Mount
Number of Circuits	6
Number of Contacts	6
Number of pins	6
Number of Positions	6
Number of Positions Loa.	All
Number of Rows	1
Operating temperature	-25...85?C
Operating Temperature	-40?C ~ 105?C
Orientation	Vertical
Package	Tape & Reel (TR)
Packaging	Reel
PCB Retention	Yes
Pitch	1.25 mm (0.049"), 1.25 .
Pitch - Mating	0.049" (1.25mm)
Pitch - Mating Interface	1.25mm
Pitch - Termination Int.	1.25mm
Plating Material	Tin
Plating min - Mating	1.016?m
Plating min - Terminati.	1.016?m
Polarized to Mating Part	Yes
Primary Type	Board Mount
Product Category	Headers & Wire Housings
Product Status	Active
Product Type	Connectors
Row Spacing - Mating	-
Series	502382, 502382 Series, .
Spatial orientation	Vertical
Special Features	Not Low-Halogen
Style	Board to Cable/Wire
Temperature Range - Ope.	-40? to +105?C
Termination	Solder, Surface Mount
Termination Interface: .	Surface Mount
Termination Style	Crimp
Tradename	CLIK-Mate
Type	PCB Receptacle, Socket
Type of connector	wire-board
Voltage - Maximum	50V AC (RMS)/DC
Voltage Rating	50V, 50 VAC/DC

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
Avnet	5023820670	0.272	1400	1400		Molex	0.272 @ 1400
Hotenda	H1418409	0.35096	1	50		Molex	0.35096 @ 50
us.rs-online.com	70373180	0.46212	10	50		Molex Incorporated	0.46212 @ 50
Newark	01P0575	0.533	1	1435		MOLEX	0.533 @ 50
Arrow	502382-0670	0.602	1	12316		Molex	0.602 @ 50
Digi-Key	2649170	0.657	1	34987		Molex	0.657 @ 50
Radwell	502382-0670	0.7	8400	50		MOLEX	0.7 @ 8400
RS Delivers	660-1062	0.888	1	50		Molex	0.888 @ 50
AmazonSC	B00OVEOKNY	2.0	1	50		MOLEX	2.0 @ 50
swatee.com	502382-0670	2.83	1	342		Molex	2.83 @ 50
TME	MX-502382-0670	7.073	1400	50		MOLEX	7.073 @ 1400
AmazonTP	B07QZD2833	49.81	1	50	2	Molex	49.81 @ 50
Zoro	G7803920	616.0	1	50		Molex	616.0 @ 50
