- mpn522070460
- brandname: MOLEX
- manufacturername: MOLEX

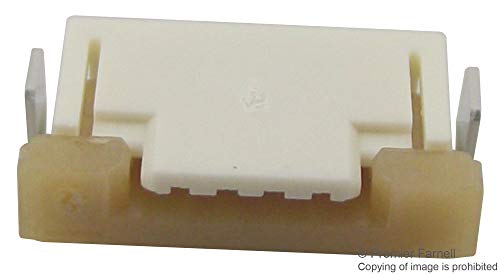

FFC & FPC Connectors 1MM FFC/FPC CONN 4CKT (10 pieces)
- PartNumber: 52207-0460
- PackageQuantity: 10
- Manufacturer: Molex
- Label: Molex
Attributes
| Key | Value |
|---|
| Actuator Color | - |
| Actuator Material | Polyphenylene Sulfide (. |
| Alternate Mfr Part Numb. | 52207-0460 |
| Alternate Part No. | 538-52207-0460 |
| Base Product Number | 052207 |
| Brand | Molex |
| Cable End Type | Tapered |
| Case | Standard |
| Category | Connectors, Interconnec. |
| Connector/Contact Type | Contacts, Top |
| Contact Finish | Gold |
| Contact Finish Thickness | 3.94?in (0.10?m) |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold |
| Current Rating | 1 A |
| Current Rating (Amps) | 1A |
| Description | CONN FFC FPC TOP 4POS 1. |
| Detailed Description | 4 Position FFC, FPC Con. |
| Digi-Key Part Number | WM3749TR-ND - Tape & Re. |
| Features | Solder Retention, Zero . |
| FFC, FCB Thickness | 0.30mm |
| Flat Flex Type | FFC, FPC |
| Height Above Board | 0.106" (2.70mm) |
| Housing Color | - |
| Housing Material | Polyamide (PA46), Nylon. |
| Locking Feature | Slide Lock |
| Manufacturer | Molex Inc, Molex |
| Manufacturer Part No. | 52207-0460 |
| Manufacturer Product Nu. | 0522070460 |
| Manufacturer Standard L. | 11 Weeks |
| Material Flammability R. | UL94 V-0 |
| Mating Cycles | 30 |
| Mfr | Molex |
| Mounting Angle | Right |
| Mounting Type | Surface Mount, Right An. |
| Number of Circuits | 4 |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Operating Temperature | -30?C ~ 85?C |
| Orientation | Right Angle |
| Package | Tape & Reel (TR) |
| Packaging | Reel |
| Part # Aliases | 0522070460 |
| Pitch | 1 mm, 0.039" (1.00mm) |
| Product Category | FFC & FPC Connectors |
| Product Status | Active |
| Product Type | Board Mount |
| Series | Easy-On Series, 52207 |
| SKU | 498054 |
| Special Features | Not Low-Halogen |
| Termination | Solder |
| Termination Style | SMD |
| Type | SemiConductor |
| Voltage Rating | 125V, 125 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| TME | MX-52207-0460 | 0.343 | 6000 | 5 | | MOLEX | | 0.343 @ 6000 |
| Onlinecomponents.com | 52207-0460 | 0.355 | 1 | 4000 | | MOLEX / WALDOM | | 0.355 @ 5 |
| Waldom | MOLEX 52207-0460 | 0.36 | 1000 | 5 | | MOLEX | | 0.36 @ 1000 |
| Avnet | 0522070460 | 0.381 | 1000 | 2000 | | Molex | | 0.381 @ 1000 |
 | jensentools.com | 10193146 | 0.48 | 1 | 10000 | | Molex | | 0.48 @ 5 |
| us.rs-online.com | 70374297 | 0.54 | 10 | 10 | | Molex Incorporated | | 0.54 @ 10 |
| Arrow | 52207-0460 | 0.543 | 6000 | 9000 | | Molex | | 0.543 @ 6000 |
 | Zoro | G405914657 | 0.56 | 1000 | 5 | | Molex | | 0.56 @ 1000 |
 | Newark | 07P8552 | 0.849 | 1 | 590 | | MOLEX | | 0.849 @ 5 |
| RS Delivers | 670-6726P | 0.8928 | 1 | 4940 | | Molex | | 0.8928 @ 5 |
 | Digi-Key | 2421421 | 0.97 | 1 | 11868 | | Molex | | 0.97 @ 5 |
| Radwell | 52207-0460 | 1.15 | 1 | 5 | | MOLEX | | 1.15 @ 5 |
 | swatee.com | 52207-0460 | 1.65 | 1 | 2982 | | Molex | | 1.65 @ 5 |
