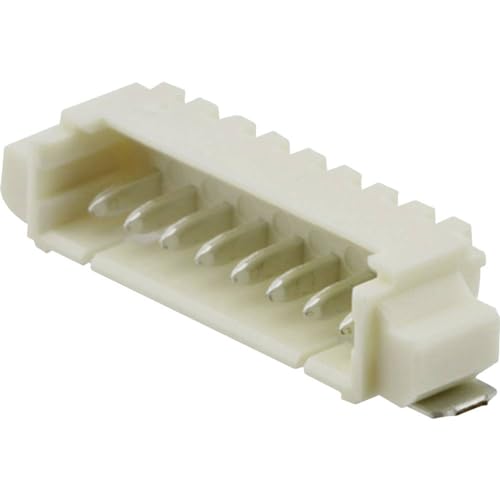

Molex / Waldom 53261-0971 Connector Headers and PCB Receptacles
- Brand: Molex / Waldom
- PartNumber: 532610971
- PackageQuantity: 1
- Manufacturer: Molex / Waldom
- Label: Molex / Waldom
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 53261-0971 |
| Alternate Part No. | 538-53261-0971 |
| Application | Signal ; Wire-to-Board |
| Applications | Automotive, General Pur. |
| Base Product Number | 053261 |
| Brand | Molex |
| Category | Connectors, Interconnec. |
| Color | Natural |
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thicknes. | 39.4?in (1.00?m) |
| Contact Finish Thicknes. | - |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Contact Material | Phosphor Bronze |
| Contact Plating | Tin |
| Contact Shape | Rectangular |
| Contact Type | Male Blade |
| Current Rating | 1 A |
| Current Rating (Amps) | - |
| Description | CONN HEADER SMD R/A 9PO. |
| Detailed Description | Connector Header Surfac. |
| Digi-Key Part Number | WM7627TR-ND - Tape & Re. |
| Family Name | PicoBlade |
| Fastening Type | Detent Lock |
| Features | Solder Retention |
| Housing Material | Thermoplastic |
| Ingress Protection | - |
| Insulation Color | Natural |
| Insulation Height | 0.134" (3.40mm) |
| Insulation Material | Polyamide (PA46), Nylon. |
| Manufacturer | Molex |
| Manufacturer Part No. | 53261-0971 |
| Manufacturer Product Nu. | 0532610971 |
| Manufacturer Standard L. | 9 Weeks |
| Mated Stacking Heights | - |
| Material Flammability R. | UL94 V-0 |
| Mfr | Molex |
| Mounting Angle | Right |
| Mounting Type | Surface Mount, Right An. |
| Number of Circuits | 9 |
| Number of Contacts | 9 |
| Number of Positions | 9 |
| Number of Positions Loa. | All |
| Number of Rows | 1 |
| Operating Temperature | - |
| Orientation | Right Angle |
| Overall Contact Length | - |
| Package | Tape & Reel (TR) |
| Package Quantity | 1 |
| Packaging | Reel |
| Part # Aliases | 0532610971 |
| Pitch | 1.25 mm (0.049"), 1.25 . |
| Pitch - Mating | 0.049" (1.25mm) |
| Plating Material | Tin |
| Primary Type | Board Mount |
| Product Category | Headers & Wire Housings |
| Product Status | Active |
| Product Type | Headers |
| Row Spacing - Mating | - |
| Series | 53261, PicoBlade 53261,. |
| Shrouding | Shrouded - 4 Wall |
| Special Features | Not Low-Halogen |
| Style | Board to Cable/Wire |
| Termination | Solder, Surface Mount |
| Termination Style | SMD |
| Tradename | PicoBlade |
| Type | Right Angle Header, Shr. |
| Voltage Rating | -, 125 V |
