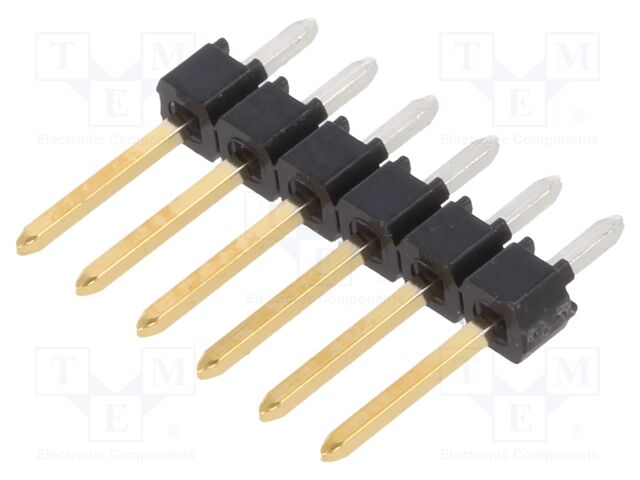

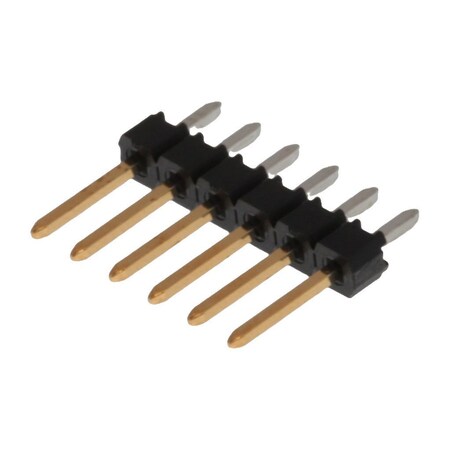

90120-0766, Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole C-Grid III Tray (50 Items)
- Brand: Molex / Waldom
- PartNumber: 90120-0766
- Model: 90120-0766
- Manufacturer: Molex / Waldom
- Label: Molex / Waldom
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 901200766 |
| Alternate Part No. | 538-90120-0766 |
| Application | Signal ; Wire-to-Board |
| Brand | Molex |
| Category | Connectors, Interconnec. |
| Connector Type | Male Pin |
| Contact Finish - Mating | 15.0?in (0.38?m) |
| Contact Finish - Post | Brass |
| Contact Finish Thicknes. | Tin |
| Contact Finish Thicknes. | Automotive, General Pur. |
| Contact Gender | Pin (Male) |
| Contact Length - Mating | 0.114" (2.90mm) |
| Contact Length - Post | 0.478" (12.15mm) |
| Contact Material | Polyester, Glass Filled. |
| Contact Plating | Gold |
| Contact Shape | Gold |
| Contact Type | 0.100" (2.54mm) |
| Current Rating | 3 A |
| Current Rating (Amps) | - |
| Fastening Type | 0.266" (6.75mm) |
| Features | -55?C ~ 125?C |
| Housing Material | Polyester |
| Ingress Protection | UL94 V-0 |
| Insulation Color | - |
| Insulation Height | Square |
| Insulation Material | - |
| Latching Type | Unlatched |
| Manufacturer | Molex |
| Manufacturer Part No. | 90120-0766 |
| Mated Stacking Heights | 118.1?in (3.00?m) |
| Material Flammability R. | Black |
| Mfr | Molex |
| Mounting Angle | Vertical |
| Mounting Type | Solder |
| Number of Contacts | 6 |
| Number of Positions | 1, 6 |
| Number of Positions Loa. | Board to Board or Cable |
| Number of Rows | 1, - |
| Operating Temperature | - |
| Overall Contact Length | 0.098" (2.50mm) |
| Package | Active |
| Package Quantity | 1 |
| Packaging | Tray |
| Part # Aliases | 0901200766 |
| Part Status | Header, Breakaway |
| Pitch | 2.54 mm, 2.54 mm (0.100. |
| Pitch - Mating | 6 |
| Primary Type | Board Mount |
| Product Category | Headers & Wire Housings |
| Product Type | Headers |
| Row Spacing - Mating | All |
| Series | Bulk, 90120, C-Grid III. |
| Shrouding | Through Hole |
| Style | Unshrouded |
| Termination | Through Hole, Push-Pull |
| Termination Style | Through Hole |
| Tradename | C-Grid |
| Type | Header, Breakaway |
| Voltage Rating | 350 VAC/DC, - |
