Molex 90120-0127

mpn90120-0127
brandname: MOLEX
manufacturername: MOLEX

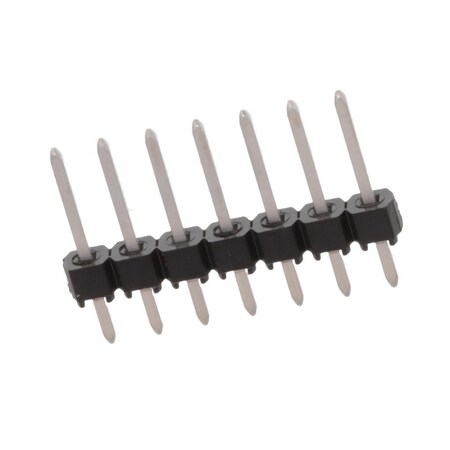

MOLEX 90120-0127 WIRE-BOARD CONNECTOR HEADER 7 POSITION, 2.54MM (10 pieces)

Brand: Molex
PartNumber: 90120-0127
PackageQuantity: 10

Attributes

Key	Value
Alternate Part No.	538-90120-0127
Applications	Automotive, General Pur.
Brand	Molex
Color	Black
Connector Type	Header, Breakaway
Contact Finish	Tin Plated
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	118.1?in (3.00?m)
Contact Finish Thicknes.	-
Contact Gender	Pin (Male)
Contact Length - Mating	0.266" (6.75mm)
Contact Length - Post	0.114" (2.90mm)
Contact Material	Brass
Contact Plating	Tin
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Current Rating (Amps)	-
Fastening Type	Push-Pull
Features	Breakaway, -
Flammability Rating	UL 94V-0
Hole Center to Center	2.54 mm
Housing Material	Polyester
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.098" (2.50mm)
Insulation Material	Polyester, Glass Filled
Latching Type	Unlatched
Manufacturer	Molex
Manufacturer Part No.	90120-0127
Mated Stacking Heights	-
Material	Polyester
Material Flammability R.	UL94 V-0
Max. Temp.	230?C
Max. Voltage	350V AC/DC
Mfr	Molex
Mounting Angle	Vertical
Mounting Type	Through Hole
Number of Contacts	7
Number of Positions	7
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-55?C ~ 125?C
Overall Contact Length	0.478" (12.15mm)
Package Quantity	1
Packaging	Tray
Part # Aliases	0901200127
Part Status	Active
Pitch	2.54 mm
Pitch - Mating	0.100" (2.54mm)
Product Category	Headers & Wire Housings
Product Type	Headers
Row Spacing - Mating	-
Series	90120
Shrouding	Unshrouded
Standards	CSA Certified; UL E29179
Style	Board to Board or Cable
Terminal Finish	Tin Plated
Terminal Type	Through Hole
Termination	Solder
Termination Style	Through Hole
Tradename	C-Grid
Type	Breakaway
Voltage Rating	350 VAC/DC, -

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Arrow	90120-0127	0.449	1	1549	Molex	0.449 @ 5
Onlinecomponents.com	90120-0127	0.479	1	61	MOLEX / WALDOM	0.479 @ 5
Waldom	MOLEX 90120-0127	0.54	100	66167	MOLEX	0.54 @ 100
jensentools.com	10198127	0.72	1	66167	Molex	0.72 @ 5
swatee.com	90120-0127	1.15	1	131	Molex	1.15 @ 5
Digi-Key	WM8077-ND	1.16	1	5	Molex	1.16 @ 5
Mouser	538-90120-0127	1.28	1	1441	Molex	1.28 @ 5
Newark	01AH1781	1.48	1	5	MOLEX	1.48 @ 5
Zoro	G600442771	130.5	150	5	Molex	130.5 @ 150
