Molex / Waldom 90131-0123

mpn901310123
brandname: MOLEX
manufacturername: MOLEX

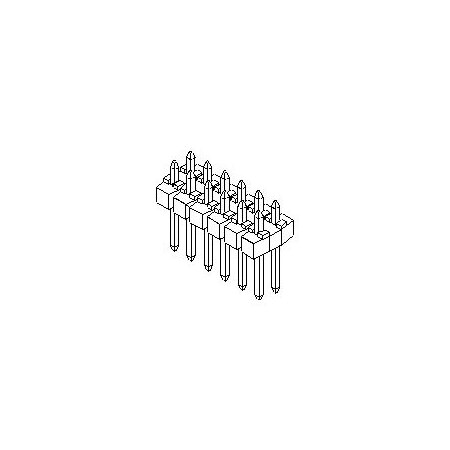

Molex / Waldom 90131-0123 Connector Headers and PCB Receptacles

Brand: Molex / Waldom
PartNumber: 90131-0123
PackageQuantity: 1
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Mfr Part Numb.	901310123
Angle	Vertical
Applications	Automotive, General Pur.
Base Product Number	090131
Breakaway	Yes
Case	Standard
Category	Connectors, Interconnec.
Circuits (Loaded)	6
Circuits (maximum)	6
Color	Black
Color - Resin	Black
Connector Type	Header, Breakaway
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	118.1?in (3.00?m)
Contact Finish Thicknes.	118.1?in (3.00?m)
Contact Length - Mating	0.266" (6.75mm)
Contact Length - Post	0.114" (2.90mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
CSA	LR19980
Current - Maximum per C.	3.0A
Current Rating	3 A
Current Rating (Amps)	-
Description	CONN HEADER VERT 6POS 2.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM8121-ND
Duration at Max. Proces.	5
Family Name	C-Grid III
Fastening Type	Push-Pull
Features	-
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.098" (2.50mm)
Insulation Material	Polyester, Glass Filled
Manufacturer	Molex Inc, Molex
Manufacturer Product Nu.	0901310123
Manufacturer Standard L.	17 Weeks
Mated Stacking Heights	-
Material - Metal	Brass
Material - Plating Mati.	Tin
Material - Plating Term.	Tin
Material - Resin	Polyester
Material Flammability R.	UL94 V-0
Max. Cycles at Max. Pro.	1
Mfr	Molex
Mounting Type	Through Hole
Number of Circuits	6
Number of Contacts	6
Number of Positions	6
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-
Orientation	Vertical
Overall Contact Length	0.478" (12.15mm)
Package	Tray
Package Quantity	1
PC Tail Length	2.90mm
Pitch	2.54 mm (0.100")
Pitch - Mating	0.100" (2.54mm)
Pitch - Mating Interface	2.54mm
Pitch - Termination Int.	2.54mm
Plating Material	Tin
Primary Type	Board Mount
Process Temperature max.	230
Product Status	Active
Row Spacing - Mating	0.100" (2.54mm)
Series	90131 Series, C-Grid II.
Shrouding	Unshrouded
SKU	497693
Special Features	Not Low-Halogen
Stackable	Yes
Style	Board to Cable/Wire
Temperature Range - Ope.	-55? to +125?C
Termination	Solder
Termination Interface: .	Through Hole
Type	SemiConductor, Vertical.
Voltage - Maximum	350V
Voltage Rating	-

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Onlinecomponents.com	90131-0123	0.357	1	3352	MOLEX / WALDOM	0.357 @ 50
Sager Electronics	0901310123	0.377	1	589	Molex	0.377 @ 50
Waldom	MOLEX 90131-0123	0.38	150	1836	MOLEX	0.38 @ 150
Newark	60H4442	0.52	1	3902	MOLEX	0.52 @ 50
NEP Electronics	90131-0123	0.5294	150	4806	Molex	0.5294 @ 150
Component Electronics	642A-6AJ	0.59	1	50	Molex	0.59 @ 50
us.rs-online.com	70373712	0.81	1	50	Molex Incorporated	0.81 @ 50
Digi-Key	760835	0.819	1	50	Molex	0.819 @ 50
RS Delivers	670-3443	0.9876	1	50	Molex	0.9876 @ 50
Zoro	G4031304	103.5	150	50	Molex	103.5 @ 150
