Molex 90131-0127

B011DHTZDQ

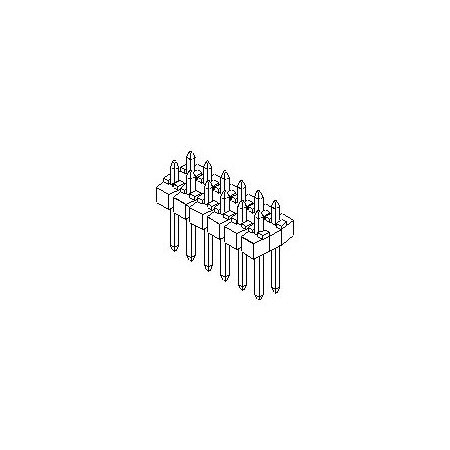

MOLEX 90131-0127 WIRE-BOARD CONNECTOR, HEADER, 14 POSITION, 2.54MM (5 pieces)

MOLEX 90131-0127 WIRE-BOARD CONNECTOR, HEADER, 14 POSITION, 2.54MM (5 pieces)zoom

Attributes

Key Value
Alternate Mfr Part Numb.901310127
AngleVertical
ApplicationsAutomotive, General Pur.
Base Product Number090131
CaseStandard
CategoryConnectors, Interconnec.
Connector TypeHeader, Breakaway
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.118.1?in (3.00?m)
Contact Finish Thicknes.118.1?in (3.00?m)
Contact Length - Mating0.266" (6.75mm)
Contact Length - Post0.114" (2.90mm)
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)-
DescriptionCONN HEADER VERT 14POS .
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberWM50035-14-ND
Fastening TypePush-Pull
Features-
Ingress Protection-
Insulation ColorBlack
Insulation Height0.098" (2.50mm)
Insulation MaterialPolyester, Glass Filled
ManufacturerMolex Inc, Molex
Manufacturer Product Nu.0901310127
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrMolex
Mounting TypeThrough Hole
Number of Contacts14
Number of Positions14
Number of Positions Loa.All
Number of Rows2
Operating Temperature-
Overall Contact Length0.478" (12.15mm)
PackageBulk
Package Quantity1
Pitch2.54 mm (0.100")
Pitch - Mating0.100" (2.54mm)
Primary TypeBoard Mount
Product StatusActive
Row Spacing - Mating0.100" (2.54mm)
SeriesC-Grid III Series, C-Gr.
ShroudingUnshrouded
SKU497691
StyleBoard to Cable/Wire
TerminationSolder
TypeSemiConductor, Header
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com90131-01270.96126907MOLEX / WALDOM0.96 @ 25
WaldomMOLEX 90131-01270.985525MOLEX0.98 @ 55
thumbzoomjensentools.com101982641.181470Molex1.18 @ 25
thumbzoomDigi-Key79169601.1991403Molex1.199 @ 25
thumbzoomTMEMX-90131-01271.6310150MOLEX1.63 @ 25
thumbzoomNewark46M49651.81125MOLEX1.81 @ 25
Mouser538-90131-01271.8112287Molex1.81 @ 25
us.rs-online.com703737202.32125Molex Incorporated2.32 @ 25
Arrow90131-01272.627154Molex2.627 @ 25
RS Delivers670-34683.27721275Molex3.2772 @ 25
thumbzoomZoroG403119170.955525Molex70.95 @ 55
