Molex / Waldom 70541-0073

B00GQRAMWW

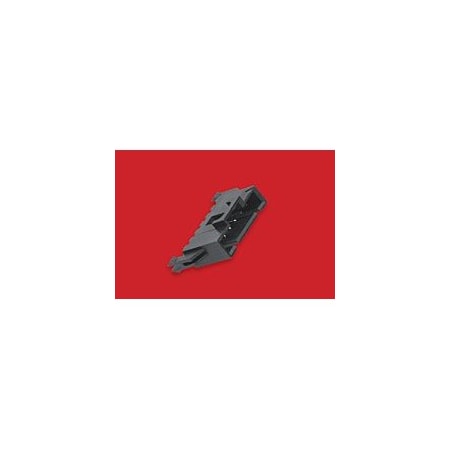

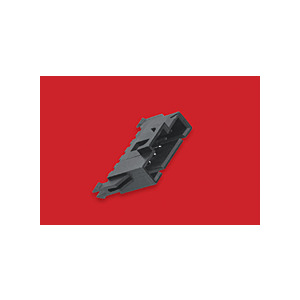

Molex / Waldom 70541-0073 Connector Headers and PCB Receptacles

Molex / Waldom 70541-0073 Connector Headers and PCB Receptacleszoom

Attributes

Key Value
ApplicationsAutomotive, General Pur.
Base Product Number070541
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.74.8?in (1.90?m)
Contact Length - Mating0.240" (6.10mm)
Contact Length - Post0.130" (3.30mm)
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)3A
Fastening TypeLatch Holder
FeaturesBoard Lock
Ingress Protection-
Insulation ColorBlack
Insulation Height0.465" (11.80mm)
Insulation MaterialPolyester, Glass Filled
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrMolex
Mounting TypeThrough Hole
Number of Positions4
Number of Positions Loa.All
Number of Rows1
Operating Temperature-40?C ~ 105?C
Overall Contact Length0.470" (11.94mm)
PackageBulk
Package Quantity1
Part StatusActive
Pitch - Mating0.100" (2.54mm)
Row Spacing - Mating-
SeriesSL 70541
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder
Voltage Rating250V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Verical70541-00730.840534Molex0.8 @ 40
Onlinecomponents.com70541-00730.8711019MOLEX / WALDOM0.87 @ 1
WaldomMOLEX 70541-00730.87651436MOLEX0.87 @ 65
Digi-Key34687390.999341440100Molex0.99934 @ 1440
thumbzoomjensentools.com101955491.0911306Molex1.09 @ 1
Newark93M32981.13651224MOLEX1.13 @ 50
thumbzoomZoroG4043852100.7565100Molex100.75 @ 65
