Molex 76160-3020

B017U2N29Q

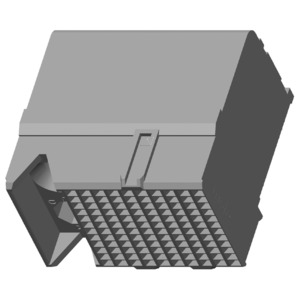

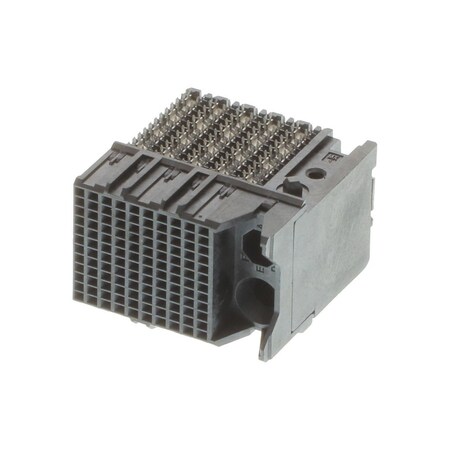

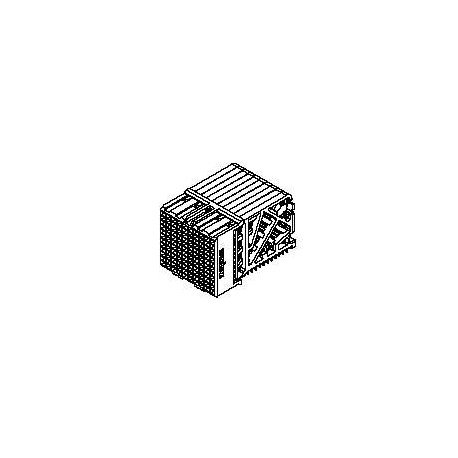

MOLEX - 76160-3020 - Connector, 76160 Series, 120 Contacts, 1.9 mm, Receptacle, Through Hole, 12 Rows

MOLEX - 76160-3020 - Connector, 76160 Series, 120 Contacts, 1.9 mm, Receptacle, Through Hole, 12 Rowszoom

Attributes

Key Value
Base Product Number076160
CategoryConnectors, Interconnec.
ColorBlack
Connector StyleImpact, Guide Left
Connector TypeReceptacle, Female Sock.
Connector Usage-
Contact FinishGold Plated, Gold
Contact Finish Thickness30.0?in (0.76?m)
Contact Layout, Typical40 Differential Pairs
Contact Plating Thickne.0.762 ?m
Current Rating0.75 A
Current Rating (Amps)-
DescriptionCONN RCPT IMPACT 120POS.
Detailed Description120 Connector Receptacl.
Digi-Key Part NumberWM14694-ND
FeaturesBoard Guide
Flammability RatingUL 94V-0
Hole Center to Center1.9 mm
ManufacturerMolex
Manufacturer Product Nu.0761603020
Manufacturer Standard L.13 Weeks
MaterialHigh Temperature Thermo.
Material Flammability R.UL94 V-0
Max. Temp.85?C
Max. Voltage30V AC/DC
MfrMolex
Mounting TypeBoard Edge, Through Hol.
Number of Columns10
Number of Contacts120
Number of Positions120
Number of Positions Loa.All
Number of Rows12
Operating Temperature-55?C ~ 85?C
PackageTray
Pitch0.053" (1.35mm)
Product StatusActive
SeriesImpact 76160
StandardsUL E29179
Terminal FinishTin Plated
Terminal TypeThrough Hole - Complian.
TerminationPress-Fit
Voltage Rating30V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com76160-302011.22122MOLEX / WALDOM11.22 @ 1
WaldomMOLEX 76160-302011.7651060MOLEX11.76 @ 5
Newark80AH093413.75180In StockMOLEX13.75 @ 180
thumbzoomjensentools.com1019675115.6811060Molex15.68 @ 1
HotendaH73324716.481In StockMolex16.48 @ 1
Verical76160-302016.65319Molex16.653 @ 1
Mouser538-76160-302018.3219Molex18.32 @ 1
thumbzoomDigi-Key278945119.181In StockMolex19.18 @ 1
thumbzoomZoroG70592658988.451In StockMolex88.45 @ 1
