Molex 0878325322

mpn87832-5322
brandname: Molex Incorporated
manufacturername: Molex Incorporated

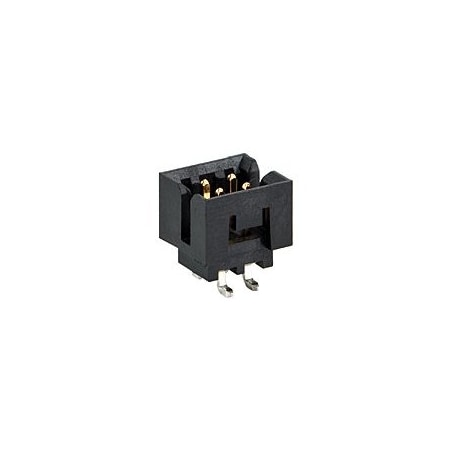

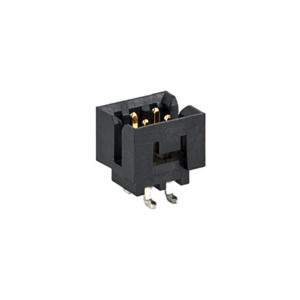

0878325322 Conn Shrouded Header (4 Sides) HDR 8 POS 2mm Solder ST Top Entry SMD Milli-Grid T/R, (10 Items)

Brand: Molex
PartNumber: 0878325322
Model: 0878325322
Manufacturer: Molex
Label: Molex

Attributes

Key	Value
Applications	Automotive, General Pur.
Base Product Number	87832
Category	Connectors, Interconnec.
Circuits (maximum)	8
Color - Resin	Black
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	15.0?in (0.38?m)
Contact Finish Thicknes.	74.8?in (1.90?m)
Contact Length - Mating	0.141" (3.60mm)
Contact Length - Post	-
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
CSA	LR19980
Current - Maximum per C.	2.0A
Current Rating (Amps)	-
Description	CONN HEADER SMD 8POS 2MM
Detailed Description	Connector Header Surfac.
Digi-Key Part Number	WM14381TR-ND - Tape & R.
Durability (mating cycl.	100
Duration at Max. Proces.	10
Fastening Type	Push-Pull
Features	Board Guide, Keying Slo.
Flammability	94V-0
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.252" (6.40mm)
Insulation Material	Polyamide (PA), Nylon, .
Keying to Mating Part	Yes
Lock to Mating Part	Yes
Manufacturer	Molex
Manufacturer Product Nu.	0878325322
Manufacturer Standard L.	26 Weeks
Mated Stacking Heights	-
Material - Plating Mati.	Gold
Material - Resin	Nylon
Material Flammability R.	UL94 V-0
Max. Cycles at Max. Pro.	1
Mfr	Molex
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-55?C ~ 105?C
Orientation	Vertical
Overall Contact Length	-
Package	Tape & Reel (TR)
Pitch - Mating	0.079" (2.00mm)
Pitch - Mating Interface	2.00mm
Plating min - Mating	0.381?m
Plating min - Terminati.	1.905?m
Process Temperature max.	260
Product Status	Active
Robotic Placement	Pick and Place Cap
Row Spacing - Mating	0.079" (2.00mm)
Series	Milli-Grid 87832
Shrouded	Fully
Shrouding	Shrouded - 4 Wall
Style	Board to Board or Cable
Temperature Range - Ope.	-55? to +105?C
Termination	Solder
Termination Interface: .	Surface Mount
UL	E29179
Voltage - Maximum	125V
Voltage Rating	-

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Hotenda	H1371599	1.28398	500	1000	Molex	1.28398 @ 500
Waldom	MOLEX 87832-5322	1.34	500	500	MOLEX	1.34 @ 500
jensentools.com	10197808	1.44	1	10	Molex	1.44 @ 10
Newark	94M1968	2.22	500	10	MOLEX	2.22 @ 500
Digi-Key	3313268	2.555	1	4292	Molex	2.555 @ 10
RS Delivers	670-6568P	4.5264	1	430	Molex	4.5264 @ 10
Zoro	G4028933	1125.0	1	10	Molex	1125.0 @ 10
