mpn:
brand:
manufacturer:
MPN:
Description:

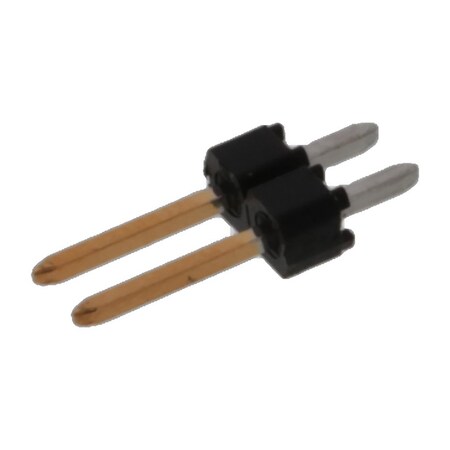

Header 2.54mm, single row, vertical, 2w
Preferred Price:
1.82
Price:
1.82
Min Simple Price:
0.299
Absolute Min Price:
1.64
Min Price:
1.64
Dimensions:
[1.0, 1.0, 1.0]
qty:
229
simpleSku:
jE2NzQ:::90120-0922
sku:
jE2NzQ::DW:90120-0922@y0
condition:
11
seller:
Arrow
amzMan:
molex / waldom
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Alternate Mfr Part Number, Manufacturer Part No. | 90120-0922 |
| Alternate Part No. | 538-90120-0922 |
| Angle, Mounting Angle, Orientation | Vertical |
| Brand, Manufacturer | Molex |
| Breakaway | Yes |
| Circuits (Loaded), Circuits (maximum), Duration at Max. Process Temperature (seconds), Number of Circuits, Number of Contacts, Number of Positions | 2 |
| Color, Color - Resin | Black |
| Contact Material, Material - Metal | Brass |
| Contact Plating, Material - Plating Mating, Plating Material | Gold |
| CSA | LR19980 |
| Current - Maximum per Contact | 3.0A |
| Current Rating | 3 A |
| Durability (mating cycles max) | 500 |
| Family Name | C-Grid III |
| Flammability | 94V-0 |
| Material - Plating Termination | Nickel |
| Max. Cycles at Max. Process Temperature, Number of Rows | 1 |
| Packaging | Tray |
| Part # Aliases | 0901200922 |
| PC Tail Length | 2.90mm |
| PCB Thickness - Recommended | 1.60mm |
| Pitch | 2.54 mm, 2.54 mm (0.100") |
| Pitch - Mating Interface, Pitch - Termination Interface | 2.54mm |
| Primary Type | Board Mount |
| Process Temperature max. C | 235 |
| Product Category | Headers & Wire Housings |
| Product Type | Headers |
| Series | 90120 Series, 90120 |
| Temperature Range - Operating | -55? to +125?C |
| Termination Interface: Style, Termination Style | Through Hole |
| Tradename | C-Grid |
| Type | Vertical Header, Breakaway |
| UL | E29179 |
| Voltage - Maximum | 350V AC/DC |
| Voltage Rating | 350 VAC/DC |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Arrow | 90120-0922 | 0.299 | 0.299 | 1 | 17 | Molex | 0.299 @ Qty: 1+ | |||
| Onlinecomponents.com | 90120-0922 | 0.325 | 0.325 | 1 | 2477 | MOLEX / WALDOM | 0.325 @ Qty: 1+ | |||
 | jensentools.com | 10198147 | 0.43 | 0.43 | 1 | 8 | Molex | 0.43 @ Qty: 1+ | ||
| Newark | 60H4199 | 0.435 | 1044.261 | 6000 | 229 | MOLEX | 0.435 @ Qty: 6000+ | |||
| Hotenda | H1367595 | 0.63 | 0.63 | 1 | 2850 | Molex | 0.63 @ Qty: 1+ | |||
| RS Delivers | 670-5114P | 0.7284 | 0.7284 | 1 | 30 | Molex | 0.7284 @ Qty: 1+ | |||
| us.rs-online.com | 70373975 | 0.73 | 0.73 | 1 | 229 | Molex Incorporated | 0.73 @ Qty: 1+ | |||
 | Digi-Key | WM12812-ND | 0.78 | 0.78 | 1 | 229 | Molex | 0.78 @ Qty: 1+ | ||
| Mouser | 538-90120-0922 | 0.86 | 0.86 | 1 | 3938 | Molex | 0.86 @ Qty: 1+ | |||
 | TME | MX-90120-0922 | 1.174 | 1.6436 | 2 | 229 | MOLEX | 1.174 @ Qty: 2+ | ||
 | swatee.com | 90120-0922 | 1.35 | 1.35 | 1 | 354 | Molex | 1.35 @ Qty: 1+ | ||
 | Zoro | G7921843 | 99.0 | 5999.4 | 150 | 229 | Molex | 99.0 @ Qty: 150+ |
