90120-0956

mpn90120-0956
brandname: Molex Incorporated
manufacturername: Molex Incorporated

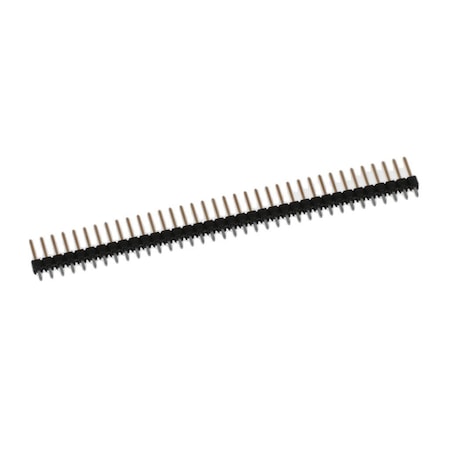

Headers & Wire Housings C-Grid SR Vt Pn 6.75 75/2.90mm Au-F 36Ckt

Headers & Wire Housings C-Grid SR Vt Pn 6.75 75/2.90mm Au-F 36Ckt

zoom

PartNumber: 90120-0956
Model: 90120-0956
PackageQuantity: 1
Binding: Electronics
Manufacturer: Molex Incorporated
Label: Molex Incorporated

Attributes

Key	Value
Applications	Automotive, General Pur.
Base Product Number	090120
Category	Connectors, Interconnec.
Connector Type	Header, Breakaway
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	30.0?in (0.76?m)
Contact Finish Thicknes.	118.1?in (3.00?m)
Contact Length - Mating	0.266" (6.75mm)
Contact Length - Post	0.114" (2.90mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	-
Description	CONN HEADER VERT 36POS .
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM20581-ND
Fastening Type	Push-Pull
Features	-
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.098" (2.50mm)
Insulation Material	Polyester, Glass Filled
Manufacturer	Molex
Manufacturer Product Nu.	0901200956
Manufacturer Standard L.	12 Weeks
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Type	Through Hole
Number of Positions	36
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-55?C ~ 125?C
Overall Contact Length	0.478" (12.15mm)
Package	Tray
Pitch - Mating	0.100" (2.54mm)
Product Status	Active
Row Spacing - Mating	-
Series	C-Grid III 90120
Shrouding	Unshrouded
Style	Board to Board or Cable
Termination	Solder
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	MOLEX 90120-0956	5.57	10	3083		MOLEX		5.57 @ 10
	jensentools.com	10198151	7.06	1	3083		Molex		7.06 @ 1
	Digi-Key	3303647	11.3	1	200		Molex		11.3 @ 1
	Newark	94M2706	11.96	1	3083		MOLEX		11.96 @ 1
	RS Delivers	670-5161P	18.7332	1	35		Molex		18.7332 @ 1
	Zoro	G4049321	88.9	1	In Stock		Molex		88.9 @ 1
