- mpnEDS-408A-MM-ST-T
- brandname: Moxa
- manufacturername: Moxa

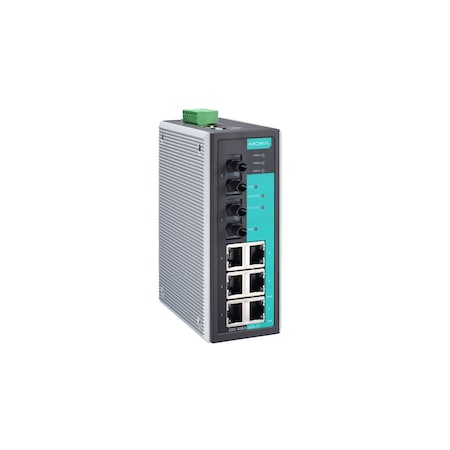

MOXA EDS-408A-MM-ST-T Entry Level Managed Ethernet Switch with 6 x 10/100 BaseTx Ports, 2 Multi Mode 100 BaseFx Ports with Port Base VLAN, and QoS with -40~75C, ST Connector
- Brand: Moxa
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: MOXA
- Label: MOXA
Attributes
| Key | Value |
|---|
| 100BaseFX Ports (multi-. | 2 |
| Alarm Contact Channels | Relay output with curre. |
| Ambient Relative Humidi. | 5 to 95% (non-condensin. |
| Connection | 1 removable 6-contact t. |
| Console Port | RS-232 (TxD, RxD, GND),. |
| Country of Origin (subj. | Taiwan, Province of Chi. |
| Dimensions | 53.6 x 135 x 105 mm (2.. |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B . |
| Ethernet Interface | Turbo Ring, Master, Cou. |
| Filter | 802.1Q VLAN, GMRP, GVRP. |
| Freefall | IEC 60068-2-31 |
| Hazardous Locations | ATEX, Class I Division . |
| Housing | Metal |
| Housing Material | Metal |
| IGMP Groups | 256 |
| Industrial Protocols | EtherNet/IP, Modbus TCP |
| Input Current | 0.30 A @ 24 VDC |
| Input Voltage | 12/24/48 VDC, Redundant. |
| Installation | DIN-rail mounting, Wall. |
| IP Rating | IP30 |
| MAC Table Size | 8 K |
| Management | Back Pressure Flow Cont. |
| Maritime | NK, DNV |
| Maximum Number of VLANs | 64 |
| MIB | Bridge MIB, Ethernet-li. |
| Mounting Type | DIN Rail Mount |
| Number of Ports | 8 |
| Operating Temperature | -40 to 75?C (-40 to 167. |
| Operating Voltage | 9.6 to 60 VDC |
| Overload Current Protec. | Supported |
| Packet Buffer Size | 1 Mbits |
| Port Style | 6 x 10/100BaseT(X) ; 2 . |
| Priority Queues | 4 |
| Railway | EN 50121-4 |
| Redundancy Protocols | RSTP, STP, Turbo Chain,. |
| Reverse Polarity Protec. | Supported |
| Safety | EN 60950-1, UL 508, UL . |
| Series | EDS-408A Series |
| Shock | IEC 60068-2-27 |
| Special Features | RSTP/STP ;QOS ;IGMP Sno. |
| Standards | Telcordia (Bellcore), GB |
| Storage Temperature (pa. | -40 to 85?C (-40 to 185. |
| Supply Voltage | 12 VDC ; 24 VDC ; 48 VDC |
| Time | 1,253,072 hrs |
| Time Management | NTP Server/Client, SNTP |
| Traffic Control | NEMA TS2 |
| Type | Managed Switch |
| Vibration | IEC 60068-2-6 |
| VLAN ID Range | VID 1 to 4094 |
| Weight | 650 g (1.44 lb) |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | primebuy.com | EDS-408A-MM-ST-T | 1000.75 | 1 | In Stock | | Moxa | 650.0 | 1000.75 @ 1 |
| us.rs-online.com | 71989826 | 1001.74 | 1 | In Stock | | Moxa | | 1001.74 @ 1 |
 | Zoro | G4412198 | 1060.0 | 1 | In Stock | 50 | Moxa | | 1060.0 @ 1 |
