- mpnTCC-100I-T
- brandname: Moxa
- manufacturername: Moxa

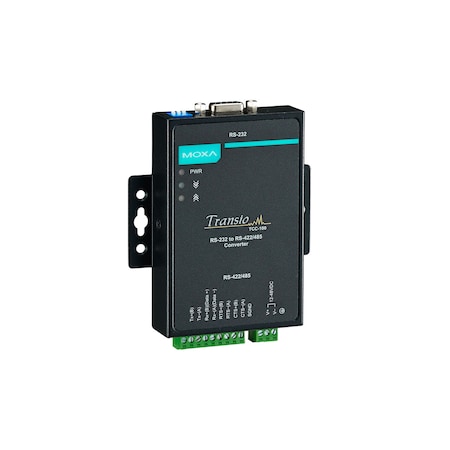

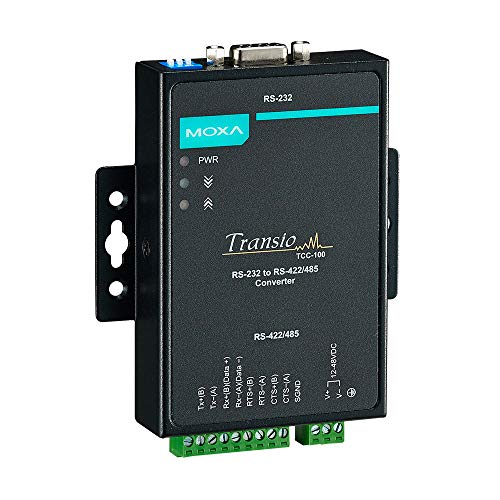

(DMC Taiwan) Industrial RS-232 to RS-422/485 converters with Optional 2KV Isolation -40 to 85?C Operating Temperature
- Brand: (DMC Taiwan)
- PartNumber: TCC-100I-T
- Model: TCC-100I-T
- PackageQuantity: 1
- Binding: Tools & Home Improvement
- Manufacturer: MOXA
- Label: MOXA
Attributes
| Key | Value |
|---|
| Ambient Relative Humidi. | 5 to 95% (non-condensin. |
| Baud Rate | 50 bps to 921.6 kbps (s. |
| Category | Networking Solutions |
| Component | Serial to Serial Conver. |
| Connector | Terminal block |
| Converter Type | Serial to Fiber |
| Country of Origin (subj. | Taiwan, Province of Chi. |
| Dimensions | 67 x 100.4 x 22 mm (2.6. |
| EMC | EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B . |
| Family Name | TCC |
| Housing | Metal |
| Input Current | 150 mA at 12 to 48 VDC |
| Input Voltage | 12 to 48 VDC |
| Interface | RS-232, RS-422, RS-485 |
| IP Rating | IP30 |
| Isolation | 2 kV (I models) |
| Isolation Voltage | 2 kV |
| Manufacturer | Moxa |
| Mfr | Moxa |
| Mounting Type | DIN Rail Mount ; Wall M. |
| Number of IO Ports | 2 |
| Number of Ports | 2 |
| Number of Power Inputs | 1 |
| Operating Temperature | -40 to 85?C (-40 to 185. |
| Overload Current Protec. | Supported |
| Package | Box |
| Power Connector | Terminal block (for DC . |
| Product Status | Active |
| Protocol Type | RS-232 ; RS-422 ; RS-485 |
| Pull High/Low Resistor . | 1 kilo-ohm, 150 kilo-oh. |
| RS-232 | TxD, RxD, RTS, CTS, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485 Data Direction C. | ADDC (automatic data di. |
| RS-485-2w | Data+, Data-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| Safety | UL 60950-1 |
| Series | TCC-100I, TCC-100I Seri. |
| Standards | Telcordia (Bellcore), GB |
| Storage Temperature (pa. | -40 to 85?C (-40 to 185. |
| Supply Voltage | 12 VDC ; 24 VDC ; 36 VD. |
| Terminator for RS-485 | N/A, 120 ohms, 120 kilo. |
| Time | 3,017,857 hrs |
| Type | Serial to Serial, Media. |
| Vibration | IEC 60068-2-6 |
| Weight | 148 g (0.33 lb) |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | primebuy.com | TCC-100I-T | 277.25 | 1 | In Stock | | Moxa | 148.0 | 277.25 @ 1 |
 | industrialnetworking.com | TCC-100I-T | 296.66 | 1 | In Stock | | Moxa | | 296.66 @ 1 |
| rspsupply.com | MOXA TCC-100I-T | 299.13 | 1 | In Stock | | Moxa | | 299.13 @ 1 |
| us.rs-online.com | 71992508 | 334.0 | 1 | 16 | | Moxa | | 334.0 @ 1 |
| Digi-Key | 15630559 | 346.0 | 1 | In Stock | | Moxa | | 346.0 @ 1 |
 | Zoro | G4575456 | 357.14 | 1 | In Stock | 26 | Moxa | | 357.14 @ 1 |
