MRC 5203SBKF

B00DBOYMD8

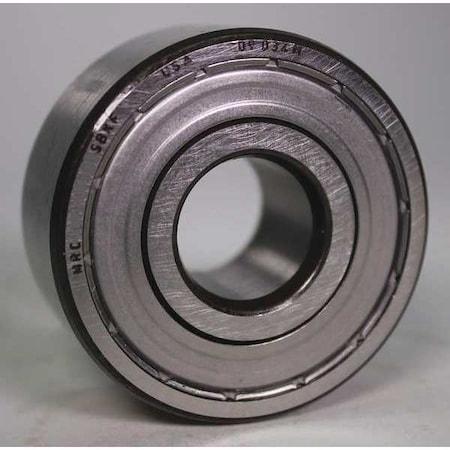

MRC 5203SBKF Angular Contact Ball Bearing, Double Row, Single Shield, 30 Degree Angle Contact, 17 mm Bore, 40 mm OD, Silver

MRC 5203SBKF Angular Contact Ball Bearing, Double Row, Single Shield, 30 Degree Angle Contact, 17 mm Bore, 40 mm OD, Silverzoom

Attributes

Key Value
ABEC Tolerance1
Bearing Industry Number3203/5203
Bore Dia.17 mm
Bore Diameter17 mm
Cage MaterialPolyamide
Contact Angle (Degree)30
Dynamic Load Capacity (.3,210
Dynamic Load Capacity (.14,300
Housing Fillet Radius0.64 mm
ItemAngular Contact Ball Be.
Lubricant MaterialPolyrex
LubricationExxon Polyrex
Max. RPM15,000 RPM
Maximum Temperature125 Degrees C
Minimum Temperature-20 Degrees C
Outside Dia.40 mm
Outside Diameter40 mm
Overall Width17.5 mm
Static Load Capacity (L.1,980
Static Load Capacity (N)8,800
System of MeasurementMetric
Temp. Range (F)0 Degrees to 257 Degre.
TypeDouble Row Shielded
Width17.47 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonSCB00DBOYMD873.391In StockMRC73.39 @ 1
thumbzoomPurvis5203SBKF76.61In StockMRC76.6 @ 1
thumbzoomZoroG026098982.351In Stock10Mrc0.2282.35 @ 1
