MRC 5307C

B006KSM2MA

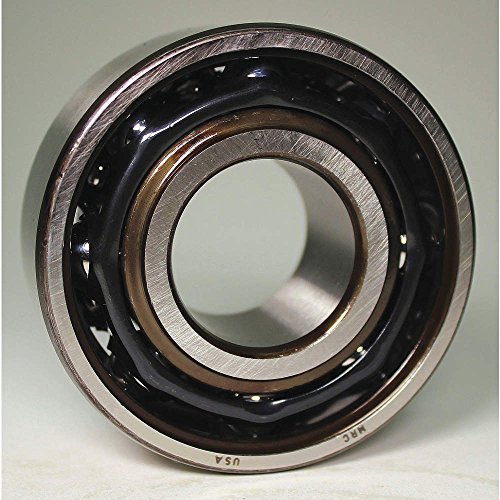

MRC 5307C Ball Bearing, Open, No Snap Ring, Metric 35 millimeters ID, 80 millimeters OD, 1-3/8" Width, 5600 rpm Max RPM, 7760 pounds Static Load Capacity, 11100 pounds Dynamic Load Capacity

MRC 5307C Ball Bearing, Open, No Snap Ring, Metric 35 millimeters ID, 80 millimeters OD, 1-3/8" Width, 5600 rpm Max RPM, 7760 pounds Static Load Capacity, 11100 pounds Dynamic Load Capacityzoom

Attributes

Key Value
ABEC Tolerance1
Bearing TypeSingle Bearing
Bore Dia.35 mm
Bore Diameter35 mm
Cage MaterialSteel
ClosureOpen
Contact Angle30 Degrees
Contact Angle (Degree)30
Contact Bearing TypeAngular Contact
Dynamic Load Capacity (.11,100
Dynamic Load Capacity (.49,400
Housing Fillet Radius1.5 mm
ItemAngular Contact Ball Be.
Load DirectionRadial
Matched Mount TypeNot Applicable
Max. RPM7,500 RPM
Outside Dia.80 mm
Outside Diameter80 mm
Overall Width34.9 mm
Static Load Capacity (L.7,760
Static Load Capacity (N)34,500
Temp. Range (F)0 Degrees to 257 Degre.
TypeDouble Row
Width34.93 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Grainger36NF83109.61In Stock15MRC109.6 @ 1
thumbzoomPurvis5307C112.321In StockMRC112.32 @ 1
thumbzoomZoroG0259905114.9911Mrc1.66114.99 @ 1
