MRC 5307M

B006KSM5BS

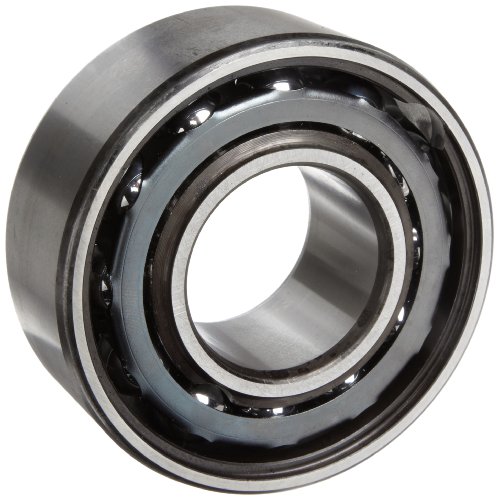

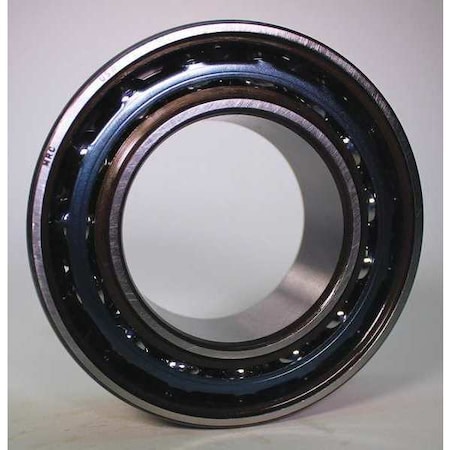

MRC 5307M Ball Bearing, Open, No Snap Ring, Metric 35 millimeters ID, 80 millimeters OD, 1-3/8" Width, 5600 rpm Max RPM, 10800 pounds Static Load Capacity, 11800 pounds Dynamic Load Capacity

MRC 5307M Ball Bearing, Open, No Snap Ring, Metric 35 millimeters ID, 80 millimeters OD, 1-3/8" Width, 5600 rpm Max RPM, 10800 pounds Static Load Capacity, 11800 pounds Dynamic Load Capacityzoom

Attributes

Key Value
ABEC Tolerance1
Bore Dia.35 mm
Bore Diameter35 mm
Cage MaterialSteel
ClosureOpen
Contact Angle (Degree)30
Dynamic Load Capacity (.11,800
Dynamic Load Capacity (.52,300
Dynamic Radial Load Cap.52,300 N
Housing Fillet Radius1.5 mm
ItemAngular Contact Ball Be.
Matched Bearing TypeNot Matched/Single Bear.
Max. RPM7,500 RPM
Maximum Temperature125 Degrees C
Outside Dia.80 mm
Outside Diameter80 mm
Overall Width34.9 mm
Ring Material GradeAISI 52100
Static Load Capacity (L.10,800
Static Load Capacity (N)48,000
Static Radial Load Capa.48,000 N
Temp. Range (F)0 Degrees to 257 Degre.
TypeDouble Row
Width34.93 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomPurvis5307M152.81In StockMRC152.8 @ 1
Grainger36NF88156.51In Stock15MRC156.5 @ 1
thumbzoomsustainablesupply.comC2906336180.121In StockMrc1.68180.12 @ 1
thumbzoomZoroG0259850191.991In StockMrc1.68191.99 @ 1
