Murata LQP18MN3N9C02D

mpnLQP18MN3N9C02D
brandname: Murata
manufacturername: Murata

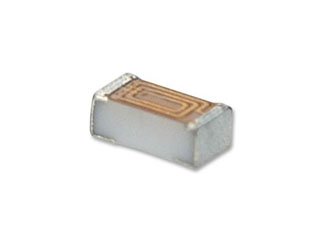

MURATA LQP18MN3N9C02D LQP Series 0603 3.9 nH ?0.2 nH Tol. 200 mA SMT High Frequency Chip Inductor - 4000 item(s)

MURATA LQP18MN3N9C02D LQP Series 0603 3.9 nH ?0.2 nH Tol. 200 mA SMT High Frequency Chip Inductor - 4000 item(s)

zoom

Brand: Murata
PartNumber: LQP18MN3N9C02D
Model: LQP18MN3N9C02D
PackageQuantity: 1
Manufacturer: MURATA
Label: MURATA

Attributes

Key	Value
Alternate Part No.	81-LQP18MN3N9C02D
Base Product Number	LQP18MN
Brand	Murata Electronics
Case Height	0.5 mm
Case Length	1.6 mm
Case Width	0.8 mm
Category	Inductors, Coils, Chokes
Current - Saturation (I.	-
Current Rating (Amps)	200 mA
DC Resistance (DCR)	500mOhm Max
Frequency - Self Resona.	5.9GHz
Height - Seated (Max)	0.024" (0.60mm)
Inductance	3.9 nH
Inductance Frequency - .	500 MHz
Manufacturer	Murata
Manufacturer Part No.	LQP18MN3N9C02D
Material - Core	Non-Magnetic
Maximum DC Current	200 mA
Maximum DC Resistance	500 mOhms
Mfr	Murata Electronics
Mounting Type	Surface Mount
Operating Temperature	-40?C ~ 85?C
Package	Tape & Reel (TR)
Package / Case	0603 (1608 metric)
Package/Case	0603 (1608 metric)
Packaging	Reel
Product Category	Fixed Inductors
Product Status	Last Time Buy
Q @ Freq	17 @ 500MHz
Q Minimum	17
Ratings	-
Self Resonant Frequency	5900 MHz
Series	LQP18, LQP
Shielding	Unshielded
Size / Dimension	0.063" L x 0.031" W (1..
Supplier Device Package	0603 (1608 metric)
Termination Style	SMD/SMT
Test Frequency	500 MHz
Tolerance	?0.2nH, 0.2 nH
Type	Film Type Chip Inductor.

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	RS Delivers	167-3892	0.078	1	100		Murata		0.078 @ 100
	IBS Electronics	LQP18MN3N9C02D	0.09	1	100		MURATA		0.09 @ 100
	Future Electronics	C017430012	0.10212	4000	100		Murata		0.10212 @ 4000
	Hotenda	H2245792	0.10846	1	4000		Murata Electronics		0.10846 @ 100
	Digi-Key	5334399	0.11931	4000	100		Murata Electronics		0.11931 @ 4000
	swatee.com	LQP18MN3N9C02D	0.63	1	2785		Murata		0.63 @ 100
