NB SEBS12BUU-2-195MM

B007IB4LVI

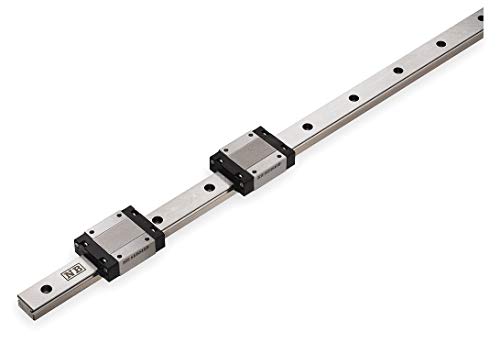

Nippon Bearing (NB) - SEBS12BUU-2-195MM - Mini-Guide Assembly: Double Carriage, 12 mm Base Wd, 7.5 mm Rail Ht, 195 mm Rail Lg

Nippon Bearing (NB) - SEBS12BUU-2-195MM - Mini-Guide Assembly: Double Carriage, 12 mm Base Wd, 7.5 mm Rail Ht, 195 mm Rail Lgzoom

Attributes

Key Value
Agency ComplianceNone
Base Width12 mm
Carriage Height10 mm
Carriage Hole Size (In.)M3 x 3.5
Carriage Length34.2 mm
Carriage MaterialStainless Steel
Carriage TypeStandard
Carriage Width27 mm
Cnt Mtg Hole to Qualify.-
Country of Origin (subj.Japan
Dimension D2-
Dimension D3-
Dimension h-
Dimension H17.5 mm
Dimension H4-
Dimension L1-
Dimension L234.2 mm
Dimension L3-
Dimension N10 mm
Dimension S X l (Carria.M3x3.5
Dimension W7.5 mm
Dimension W120 mm
Dimension W215 mm
Dimension W3-
Dimension W4-
Dimension X-
Dimension Y-
Dynamic Load Capacity (.1,391.3
Dynamic Load Capacity (.6,200
For Use With-
Hole Size3.5x6.0x4.5
Includes-
ItemMini-Guide Assembly
Liner-
Max. Pv-
Max. Speed (In/Sec)79
Mounting Hole Center to.25 mm
Mounting Hole to End (I.10 mm
Number of Rail Holes8
Overall Height (In.)-
Overall Height (mm)13
Rail FinishStainless Steel
Rail Height7.5 mm
Rail Length195 mm
Rail MaterialStainless Steel
Running Clearance (In/m.3 mm
SealsYes
Static Load Capacity (L.1,718.9
Static Load Capacity (N)7,660
Temp. Range (F)176
Thread Size-
TypeDouble Carriage
