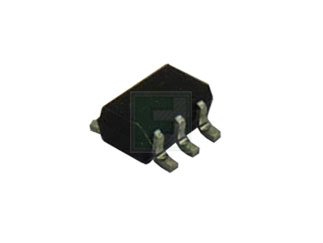

NEXPERIA BAV756S,115 BAV756S Series 90 V 250 mA SMT High-Speed Switching Diode - SOT-363 - 3000 item(s)

NEXPERIA BAV756S,115 BAV756S Series 90 V 250 mA SMT High-Speed Switching Diode - SOT-363 - 3000 item(s)zoom

Attributes

Key Value
Base Product NumberBAV756
BrandNEXPERIA
CaseSOT363
CategoryDiscrete Semiconductor .
Current - Average Recti.250mA (DC)
Current - Reverse Leaka.500 nA @ 80 V
DescriptionDIODE ARRAY GP 90V 250M.
Detailed DescriptionDiode Array 2 Pair CA +.
Digi-Key Part Number1727-4832-2-ND - Tape &.
Dimensions2.2 x 1.35 x 1.1mm
Diode ConfigurationCommon Anode Pair + Com.
Diode TechnologyDiode Technology
Features of semiconduct.fast switching
Height1.1mm
Kind of packagereel,
Length2.2mm
Load current0.1A
ManufacturerNexperia USA Inc., NEXP.
Manufacturer Product Nu.BAV756S,115
Manufacturer Standard L.4 Weeks
Max. forward impulse cu.4A
Max. forward voltage1.25V
Max. off-state voltage90V
Maximum Diode Capacitan.2pF
Maximum Forward CurrentMaximum Forward Current
Maximum Forward Voltage.855mV
Maximum Operating Tempe.+150 ?C
Maximum Reverse Voltage90V
MfrNexperia USA Inc.
Minimum Operating Tempe.-65 ?C
MountingSMD
Mounting TypeSurface Mount
Number of Elements per .4
Operating Temperature -.150?C (Max)
PackageTape & Reel (TR)
Package / Case6-TSSOP, SC-88, SOT-363
Package TypeSOT-363 (SC-88)
Pin Count6
Product StatusActive
Reverse recovery time4ns
Reverse Recovery Time (.4 ns
Semiconductor structurecommon anode,
SeriesAutomotive, AEC-Q101
SpeedFast Recovery =< 500ns,.
StockStock
Supplier Device Package6-TSSOP
TechnologyStandard
Type of diodeswitching
Voltage - DC Reverse (V.90 V
Voltage - Forward (Vf) .1.25 V @ 150 mA
Width1.35mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRS Delivers165-86920.0276300069000Nexperia0.0276 @ 3000
thumbzoomTMEBAV756S.1150.044105380NEXPERIA0.044 @ 3000
thumbzoomDigi-Key11636990.07519150746Nexperia USA Inc.0.07519 @ 3000
thumbzoomNewark45Y43930.07754732NEXPERIA0.077 @ 3000
