- mpnNL2H00C
- brandname: Nibco
- manufacturername: Nibco

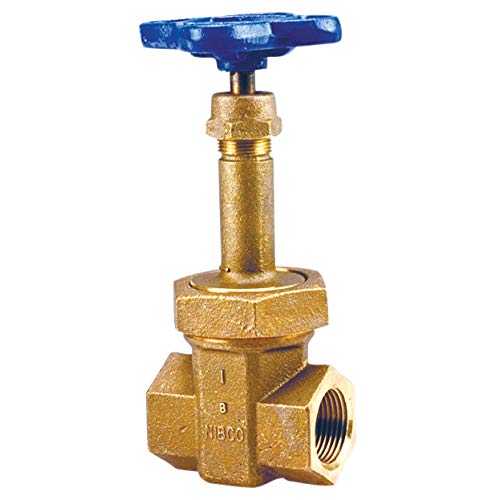

NIBCO T174A 11/2 Threaded 300# Rising Stem Gate Bronze
- Brand: NIBCO
- PartNumber: NL2H00C
- Model: T174A112
- Color: Bronze,Copper Nickel
- Size: 1.5
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: NIBCO INC.
- Label: NIBCO INC.
Attributes
| Key | Value |
|---|
| Actuation Type | Handwheel |
| Actuator Type | Handwheel |
| Applicable Standard | MSS SP-80, ISO 9001 |
| Application | Cold Working Pressure, . |
| ASTM Specifications | ASTM A-47, ASTM B-1, AS. |
| Body Material | ASTM B61 Bronze, Bronze |
| Bonnet Material | ASTM B61 Bronze |
| Bonnet Type | Union |
| Collection | T-174-A |
| Description: | T174A 11/2 THD 300# RS . |
| Domestic/Import | Domestic |
| End Connection | Female Threaded x Femal. |
| End Connection 1 | FNPT |
| End Connection 2 | FNPT |
| End Connections | FNPT |
| End Style | Threaded |
| End to End Distance | 3.38 Inch |
| FM Approved | No |
| Handle Material | ASTM A47 Malleable Iron. |
| High Pressure | 300, 600 |
| Inclusions/Features | Block Pattern, Integral. |
| Inlet to Outlet Length | 3.38 in |
| Lead Law Compliance Lev. | Approved for Non-Potabl. |
| Length | 3-19/50 in |
| Manufacturer | NIBCO INC |
| Master UPC (14) | 03992362024 |
| Material | Bronze, Copper Nickel A. |
| Maximum Temperature | 421 |
| Media | Water |
| MFG Part #: | NL2H00C |
| MSS Specifications | MSS SP-80 |
| Nominal Size | 1-1/2 in, 1-1/2 Inch |
| NSF Certified | No |
| Pressure Class | 300 lb, 300# |
| Pressure Rating | Class 300, 600 PSI Non-. |
| Recommended Valve Appli. | Air, Commercial, Gas, H. |
| Seal Material | Aramid Fiber with Graph. |
| Series | T-174-A |
| Softgoods Material | Aramid Fiber |
| Standard Pack: | Order QTY must be in mu. |
| Stem Design | Rising |
| Stem Material | ASTM B371 C69400/C69430. |
| Supplier: | NIBCO INC |
| Temperature Rating | 421 Deg F |
| Top to Inlet Center | 10-1/4 in |
| Trim Material | Silicon Bronze |
| Type | Block Pattern, Solid We. |
| UL Listed | No |
| UPC: | 039923620248 |
| Valve Body Material | Bronze |
| Valve Body Style | Threaded |
| Valve Bonnet Type | Union |
| Valve Disc Material | Copper Nickel Alloy |
| Valve Operator | Wheel Handle |
| Valve Port Opening | Full Port |
| Valve Size | 1-1/2 in |
| Valve Stem | Rising |
| Valve Type | Gate Valve |
| Vendor UPC (12) | 039923620248 |
| Wedge Material | Copper Nickel Alloy |
| Weight | 6.32 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AF Supply | T174A15 | 302.94 | 1 | In Stock | | Nibco | | 302.94 @ 1 |
 | National Supply Network | 82029364 | 348.73 | 1 | In Stock | | NIBCO | | 348.73 @ 1 |
 | clevelandplumbing.com | 6751 | 509.76 | 1 | In Stock | | Nibco | | 509.76 @ 1 |
| kscdirect.com | NIB T174A 1-1/2 | 519.7 | 1 | In Stock | | NIBCO INC | | 519.7 @ 1 |
 | Voomi Supply | NL2H00C | 541.19 | 1 | In Stock | | NIBCO | | 541.19 @ 1 |
| ferguson.com | 50194 | 561.0 | 1 | In Stock | | NIBCO | | 561.0 @ 1 |
