- mpnUCD1V331MNL1GS
- brandname: Nichicon
- manufacturername: Nichicon

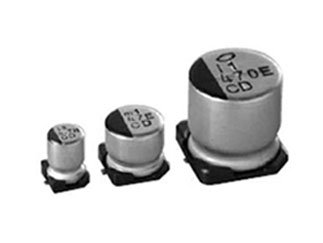

NICHICON UCD1V331MNL1GS CD Series 330 uF 35 V 105?C ?10 x 10 mm SMT Aluminum Electrolytic Cap - 500 item(s)
- Brand: Nichicon
- PartNumber: UCD1V331MNL1GS
- Model: UCD1V331MNL1GS
- PackageQuantity: 1
- Manufacturer: NICHICON
- Label: NICHICON
Attributes
| Key | Value |
|---|
| Alternate Part No. | 647-UCD1V331MNL1GS |
| Applications | Automotive |
| Body dimensions | ?10x10mm |
| Brand | NICHICON |
| Capacitance | 330 uF, 330 ?F, 330?F |
| Capacitance Range | 100 to 999 uF |
| Capacitors series | UCD |
| Case Diameter | 10 mm |
| Case Height | 10.3 mm |
| Case Length | 10 mm |
| Category | Capacitors |
| Configuration | Radial ; Can |
| Dissipation Factor DF | 0.12 |
| Element Material | Aluminum Electrolytic |
| ESR (Equivalent Series . | - |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Impedance | 80 mOhms, 80m? |
| Kind of capacitor | low ESR |
| Lead Spacing | - |
| Leakage Current | 3 uA |
| Lifetime @ Temp. | 5000 Hrs @ 105?C |
| Load Life | 2000 h |
| Manufacturer | NICHICON |
| Manufacturer Part No. | UCD1V331MNL1GS |
| Max. forward impulse cu. | 850mA |
| Maximum Operating Tempe. | + 105 C |
| Mfr | NICHICON |
| Minimum Operating Tempe. | - 55 C, -55 C |
| Mounting | SMD |
| Mounting Type | PCB Mount, Surface Mount |
| Operating Temperature | -55?C ~ 105?C |
| Operating temperature | -55...105?C |
| Operating voltage | 35V DC |
| Package | Tape & Reel (TR) |
| Package / Case | Radial, Can - SMD |
| Packaging | Reel |
| Polarization | Polar |
| Product | Low Impedance Electroly. |
| Product Category | Aluminium Electrolytic . |
| Product Status | Not For New Designs |
| Ratings | AEC-Q200 |
| Ripple Current | 850 mA |
| Ripple Current @ High F. | 850 mA @ 100 kHz |
| Ripple Current @ Low Fr. | 425 mA @ 120 Hz |
| Series | CD Series, UCD, CD |
| Service life | 5000h |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10. |
| Termination | SMD |
| Termination Style | SMD/SMT |
| Tolerance | ?20%, 20 % |
| Type | Chip Type, Low Impedance |
| Type of capacitor | electrolytic |
| Voltage - Rated | 35 V |
| Voltage Rating | 35 VDC |
| Voltage Rating DC | 35 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Future Electronics | 4613048 | 0.252 | 500 | 50 | | Nichicon | | 0.252 @ 500 |
 | Newark | 10R5566 | 0.301 | 500 | 50 | | NICHICON | | 0.301 @ 50 |
| Hotenda | H245683 | 0.30648 | 500 | 50 | | Nichicon | | 0.30648 @ 500 |
 | TME | UCD1V331MNL1GS | 0.402 | 5 | 2821 | | NICHICON | | 0.402 @ 50 |
| TTI | UCD1V331MNL1GS. | 0.408 | 100 | 50 | | Nichicon | | 0.408 @ 100 |
| Digi-Key | 2549725 | 0.518 | 1 | 50 | | Nichicon | | 0.518 @ 50 |
| us.rs-online.com | 70409349 | 0.52 | 50 | 50 | | Nichicon | | 0.52 @ 50 |
| Arrow | UCD1V331MNL1GS | 0.768 | 1 | 50 | | Nichicon | | 0.768 @ 50 |
| RS Delivers | 715-1338 | 1.2516 | 1 | 50 | | Nichicon | | 1.2516 @ 50 |
 | swatee.com | UCD1V331MNL1GS | 1.51 | 1 | 858 | | Nichicon | | 1.51 @ 50 |
| AmazonTP | B073478RG6 | 191.96 | 1 | 50 | 5 | NICHICON | | 191.96 @ 50 |
| AmazonSC | B073478RG6 | 191.96 | 1 | 50 | | Nichicon | | 191.96 @ 50 |
