Nichicon UCL1V331MNL1GS

B07D8Z7T2K

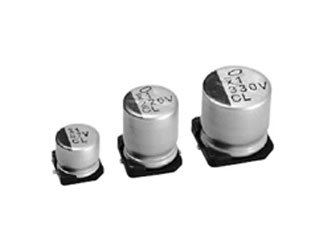

NICHICON UCL1V331MNL1GS CL Series 330 uF 35 V 105?C ?10 x 10 mm SMT Aluminum Electrolytic Cap - 25 item(s)

NICHICON UCL1V331MNL1GS CL Series 330 uF 35 V 105?C ?10 x 10 mm SMT Aluminum Electrolytic Cap - 25 item(s)zoom

Attributes

Key Value
ApplicationsGeneral Purpose
Body dimensions?10x10mm
Capacitance330 ?F, 330?F
Capacitors seriesUCL
CategoryCapacitors
ESR (Equivalent Series .-
Height - Seated (Max)0.394" (10.00mm)
Impedance0.06?, 60 mOhms
Kind of capacitorlow ESR
Lead Spacing-
Lifetime @ Temp.2000 Hrs @ 105?C
ManufacturerNichicon
Max. forward impulse cu.1190mA
MfrNichicon
MountingSMD
Mounting TypeSurface Mount
Operating Temperature-55?C ~ 105?C
Operating temperature-55...105?C
Operating voltage35V DC
PackageTape & Reel (TR)
Package / CaseRadial, Can - SMD
Part StatusActive
PolarizationPolar
Product StatusActive
Ratings-
Ripple Current @ High F.1.19 A @ 100 kHz
Ripple Current @ Low Fr.595 mA @ 120 Hz
SeriesUCL
Service life2000h
Size / Dimension0.394" Dia (10.00mm)
Surface Mount Land Size0.406" L x 0.406" W (10.
Tolerance?20%
Type of capacitorelectrolytic
Voltage - Rated35 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Future Electronics70096830.31850050Nichicon0.318 @ 500
HotendaH2727790.4235001000Nichicon0.423 @ 500
us.rs-online.com720381860.44459100050Nichicon0.44459 @ 1000
thumbzoomNewark84R90160.51150050NICHICON0.511 @ 500
Digi-Key23004640.6768150Nichicon0.6768 @ 50
thumbzoomTMEUCL1V331MNL1GS0.736250NICHICON0.736 @ 50
AmazonTPB081TJ5PZ556.251502Nichicon56.25 @ 50
AmazonSCB073473G98404.79150Nichicon404.79 @ 50
