Nichicon UCY2E151MHD

mpnUCY2E151MHD
brandname: Nichicon
manufacturername: Nichicon

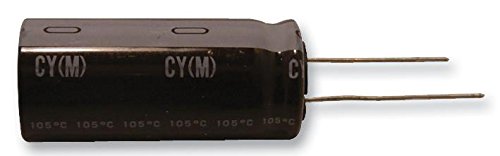

Electrolytic Capacitor, Miniature, 150 ?F, 250 V, CY Series, ? 20%, Radial Leaded, 18 mm

Electrolytic Capacitor, Miniature, 150 ?F, 250 V, CY Series, ? 20%, Radial Leaded, 18 mm

zoom

Brand: Nichicon
PartNumber: UCY2E151MHD
Model: UCY2E151MHD
PackageQuantity: 1
Manufacturer: NICHICON
Label: NICHICON

Attributes

Key	Value
Applications	General Purpose
Body dimensions	?18x25mm
Capacitance	150?F, 150 ?F
Capacitors series	UCY
Category	Capacitors
ESR (Equivalent Series .	-
Height - Seated (Max)	1.043" (26.50mm)
Lead Spacing	0.295" (7.50mm)
Lifetime @ Temp.	12000 Hrs @ 105?C
Manufacturer	Nichicon
Max. operating current	970mA
Mfr	Nichicon
Mounting	THT
Mounting Type	Through Hole
Operating Temperature	-40?C ~ 105?C
Operating temperature	-40...105?C
Operating voltage	250V DC
Package	Bulk
Package / Case	Radial, Can
Polarization	Polar
Product Status	Active
Ratings	-
Ripple Current @ High F.	1.94 A @ 100 kHz
Ripple Current @ Low Fr.	970 mA @ 120 Hz
Series	UCY
Service life	12000h
Size / Dimension	0.709" Dia (18.00mm)
Surface Mount Land Size	-
Terminal pitch	7.5mm
Tolerance	?20%
Type of capacitor	electrolytic
Voltage - Rated	250 V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	TME	UCY2E151MHD	1.3	50	76		NICHICON		1.3 @ 50
	Allied Electronics	E4766577	1.502	150	76		Nichicon		1.502 @ 150
	Newark	58R7277	1.8	300	55		NICHICON		1.8 @ 100
	Radwell	UCY2E151MHD	2.5	100	76		NICHICON		2.5 @ 100
	Digi-Key	2597721	3.61	1	76		Nichicon		3.61 @ 1
