UPM1J471MHD6

B00DWIL0MY

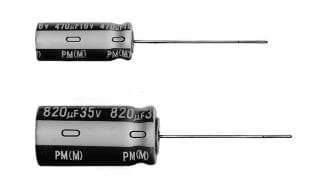

Aluminum Electrolytic Capacitors - Leaded 63volts 470uF 16x25 20% 7.5LS (1 piece)

Aluminum Electrolytic Capacitors - Leaded 63volts 470uF 16x25 20% 7.5LS (1 piece)zoom

Attributes

Key Value
ApplicationsGeneral Purpose
Body dimensions?16x25mm
Capacitance470 ?F, 470 uF, 470?F
Capacitance (uF)470
Capacitance Range100 to 999 uF
Capacitor applicationswitching power supplies
Capacitors seriesUPM
Case SizeDia. 0.63 x L 0.984 in .
Case StyleRadial
CategoryCapacitors
ConfigurationRadial ; Can
Diameter (mm)16
Element MaterialAluminum Electrolytic
ESR (Equivalent Series .-
Height (mm)25
Height - Seated (Max)1.063" (27.00mm)
Impedance42 mOhms, 0.042?
Kind of capacitorlow ESR
Lead Spacing0.295" (7.50mm), 0.295 .
Lifetime @ Temp.5000 Hrs @ 105?C
ManufacturerNichicon
MfrNichicon
Minimum Operating Tempe.-55 C
MountingTHT
Mounting TypeThrough Hole, PCB Mount
Operating current1700mA
Operating Temperature-55?C ~ 105?C
Operating temperature-55...105?C
Operating voltage63V DC
PackageBulk
Package / CaseRadial, Can
Part StatusActive
PolarityPolar
PolarizationPolar
Ratings-
Ripple Current @ High F.1.7 A @ 10 kHz
Ripple Current @ Low Fr.1.36 A @ 120 Hz
SeriesUPM, UPM Series
Service life2000h
Size / Dimension0.630" Dia (16.00mm)
Surface Mount Land Size-
Temperature (deg C)105
Terminal pitch7.5mm
TerminationThrough Hole
Tolerance?20%, 20% %
TypeElectrolytic
Type of capacitorElectrolytic
Voltage (V)63
Voltage - Rated63 V
Voltage Rating63 VDC
Weight (lbs)(0.004)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Future Electronics23437130.534400224Nichicon0.534 @ 400
thumbzoomNewark54K96080.683400146NICHICON0.683 @ 100
thumbzoomBD EnterprisesUPM1J471MHD61.551136Nichicon0.0041.55 @ 1
thumbzoomTMEUPM1J471MHD61.6510146NICHICON1.65 @ 10
us.rs-online.com701877981.86300146Nichicon1.86 @ 300
Digi-Key25996861.885000146Nichicon1.88 @ 1
