- mpnUPW1C122MPD
- brandname: Nichicon
- manufacturername: Nichicon

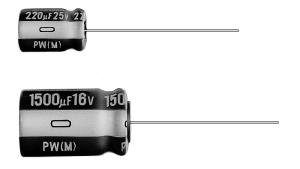

Aluminum Electrolytic Capacitors - Leaded 16volts 1200uF 10x25 20% (1 piece)
- PartNumber: UPW1C122MPD
- PackageQuantity: 1
- Manufacturer: Nichicon
- Label: Nichicon
Attributes
| Key | Value |
|---|
| Additional Feature | NON SOLVENT-PROOF |
| Alternate Part No. | 647-UPW1C122MPD |
| Applications | General Purpose |
| Body dimensions | ?10x25mm |
| Brand | Nichicon |
| Capacitance | 1.2 mF , 1200 ?F, 1200. |
| Capacitance Range | 1000 to 9999 uF |
| Capacitor application | switching power supplies |
| Capacitor Type | ALUMINUM ELECTROLYTIC . |
| Capacitors series | UPW |
| Case Diameter | 10 mm |
| Case Length | 25 mm |
| Case Size | Dia. 0.394 x L 0.984 in. |
| Category | Capacitors |
| Configuration | Radial ; Can |
| Diameter | 10 mm |
| Dielectric Material | ALUMINUM (WET) |
| Dimensions | 10 mm Dia. x 25 mm L |
| Dissipation Factor DF | 0.16 |
| Element Material | Aluminum Electrolytic |
| ESR (Equivalent Series . | - |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Impedance | 0.045?, 45 mOhms |
| JESD-609 Code | e3 |
| Kind of capacitor | low ESR |
| Lead Spacing | 5 mm, 0.197 In. (5.00 m. |
| Lead Style | Straight |
| Leakage Current | 576 ?A , 576 uA |
| Length | 25 mm |
| Lifetime @ Temp. | 5000 Hrs @ 105?C |
| Load Life | 5000 h |
| Manufacturer | Nichicon, Nichicon Cor. |
| Manufacturer Part No. | UPW1C122MPD |
| Manufacturer Part Number | UPW1C122MPD |
| Manufacturer Series | PW |
| Maximum Operating Tempe. | + 105 C |
| Mfr | Nichicon |
| Minimum Operating Tempe. | -55 C |
| Mounting | THT |
| Mounting Feature | THROUGH HOLE MOUNT |
| Mounting Type | Through Hole, PCB Mount |
| Negative Tolerance | 20 % |
| Operating current | 1440mA |
| Operating Temperature | -55?C ~ 105?C |
| Operating temperature | -55...105?C |
| Operating Temperature-M. | 105 ?C |
| Operating Temperature-M. | -55 ?C |
| Operating voltage | 16V DC |
| Package | Bulk |
| Package / Case | Radial, Can |
| Package Description | , |
| Package Shape | CYLINDRICAL PACKAGE |
| Package Style | Radial |
| Packaging | Bulk, - |
| Packing Method | TAPE |
| Pbfree Code | Yes |
| Polarity | POLARIZED |
| Polarization | Polar |
| Product | Low Impedance Electroly. |
| Product Category | Aluminium Electrolytic . |
| Product Status | Not For New Designs |
| Ratings | - |
| Ripple Current | 1440 mA |
| Ripple Current @ High F. | 1.44 A @ 100 kHz |
| Ripple Current @ Low Fr. | 1.224 A @ 120 Hz |
| Series | UPW, UPW Series, PW |
| Service life | 5000h |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Surface Mount Land Size | - |
| Terminal pitch | 5mm |
| Termination | Through Hole |
| Termination Style | Radial |
| Tolerance | 20 %, ?20%, 20% % |
| Type | Extremely Low Impedance. |
| Type of capacitor | electrolytic |
| Voltage - Rated | 16 V |
| Voltage Rating | 16 VDC |
| Voltage Rating DC | 16 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| iodParts | UPW1C122MPD | 0.247 | 5000 | 11800 | | Nichicon Corporation | | 0.247 @ 5000 |
| Arrow | UPW1C122MPD | 0.328 | 1 | 364 | | Nichicon | | 0.328 @ 5 |
 | Newark | 55K0173 | 0.344 | 1200 | 5 | | NICHICON | | 0.344 @ 1000 |
 | TME | UPW1C122MPD | 0.35244 | 1200 | 5 | | NICHICON | | 0.35244 @ 1200 |
 | Radwell | UPW1C122MPD | 0.6 | 600 | 5 | | NICHICON | | 0.6 @ 600 |
| Hotenda | H262331 | 0.78 | 1 | 996 | | Nichicon | | 0.78 @ 5 |
| Mouser | 647-UPW1C122MPD | 0.88 | 1 | 1006 | | Nichicon | | 0.88 @ 5 |
| RS Delivers | 715-2571 | 0.9768 | 1 | 5 | | Nichicon | | 0.9768 @ 5 |
| us.rs-online.com | 70187398 | 1.1 | 1 | 5 | | Nichicon | | 1.1 @ 5 |
| Digi-Key | 589532 | 1.1 | 1 | 5 | | Nichicon | | 1.1 @ 5 |
 | swatee.com | UPW1C122MPD | 1.65 | 1 | 382 | | Nichicon | | 1.65 @ 5 |
