NKK Switches M2023SS1G03

B005TB803E

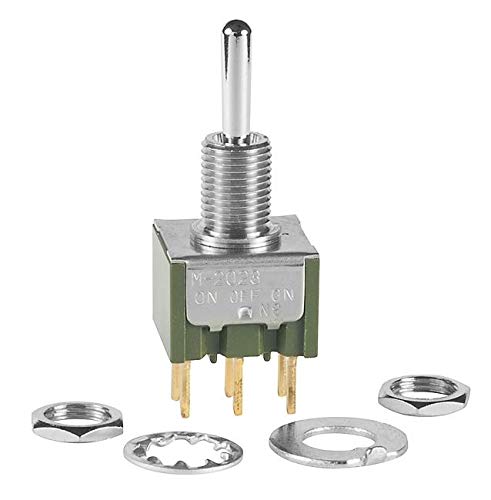

NKK SWITCHES M2023SS1G03 Switch, Toggle, DPDT, 0.1A, 28VAC

NKK SWITCHES M2023SS1G03 Switch, Toggle, DPDT, 0.1A, 28VACzoom

Attributes

Key Value
Actuator Length10.50mm
Actuator MaterialBrass, Chrome Plated
Actuator TypeStandard Round, Bat
Base Product NumberM2023SS
Bushing Thread1/4-40
CategorySwitches
CircuitDPDT
Contact FormDPDT
Current Rating0.4 A
Current Rating (Amps)0.4VA (AC/DC)
DescriptionSWITCH TOGGLE DPDT 0.4V.
Detailed DescriptionToggle Switch DPDT Pane.
Digi-Key Part Number360-1851-ND
Electrical Life50,000 Cycles
Family NameM Series Family
FeaturesEpoxy Sealed Terminals
IlluminationNon-Illuminated
Illumination Type, Color-
Illumination Voltage (N.-
Ingress Protection-
ManufacturerNKK Switches
Manufacturer Product Nu.M2023SS1G03
MfrNKK Switches
Mounting TypePanel Mount
Operating Temperature-30?C ~ 85?C
OperationON-OFF-ON
PackageBulk
Panel Cutout DimensionsCircular - 6.50mm Dia
Product StatusObsolete
SeriesM Series, Miniature Tog.
Switch FunctionON-OFF-ON
Termination StylePC Pin
Voltage Rating28 ; 28 V
Voltage Rating - AC28 V
Voltage Rating - DC28 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com7036655810.131In StockNKK Switches10.13 @ 1
Future Electronics854975010.20852100In StockNKK Switches10.20852 @ 100
thumbzoomDigi-Key100693011.9281170NKK Switches11.928 @ 1
AmazonTPB005TB803E12.541In Stock2NKK SWITCHES12.54 @ 1
AmazonSCB005TB803E14.771In StockNKK Switches14.77 @ 1
