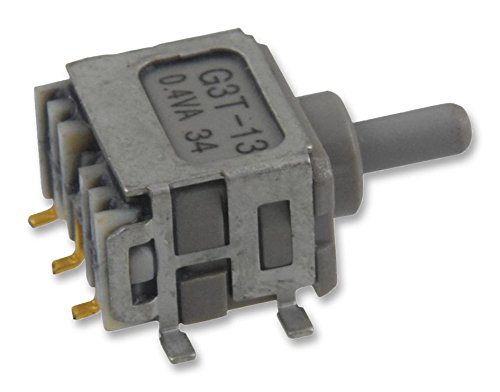

NKK Switches G3T13AH-R

NKK Switches Part Number G3T13AH-R

NKK Switches Part Number G3T13AH-Rzoom

Attributes

Key Value
ActuatorBat
Actuator Length3.81mm
Actuator MaterialPolyphenylene Sulfide (.
Actuator TypeStandard Round
Alternate Part No.633-G3T13AH-R
Base Product NumberG3T13AH
BrandNKK Switches
Bushing ThreadUnthreaded
CategorySwitches
CircuitSPDT
Contact FormSPDT
Contact PlatingGold
Current Rating100 mA
Current Rating (Amps)0.4VA (AC/DC)
Electrical Life50,000 Cycles
FeaturesProcess Sealed
IlluminationNon-Illuminated
Illumination Type, Color-
Illumination Voltage (N.-
Ingress Protection-
ManufacturerNKK Switches
Manufacturer Part No.G3T13AH-R
MfrNKK Switches
Minimum Order350
Mounting StyleThrough Hole
Mounting TypeSurface Mount, Right An.
Operating Temperature-30?C ~ 85?C
PackageTape & Reel (TR)
PackagingReel
Panel Cutout Dimensions-
Part # AliasesG3T-13AH-TP
Power Rating0.4 VA
Product CategoryToggle Switches
Product StatusActive
SeriesG3T
Switch FunctionON - OFF - ON, On-Off-On
Terminal SealSealed
Termination StyleSolder Pin, Gull Wing
Voltage Rating - AC28 V
Voltage Rating - DC28 V
Voltage Rating AC28 V
Voltage Rating DC28 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Future ElectronicsC0177645594.21250028NKK Switches4.212 @ 500
thumbzoomNewark09X98004.89500In StockNKK SWITCHES4.89 @ 500
thumbzoomswatee.comG3T13AH-R5.04350786NKK Switches5.04 @ 350
Digi-Key10068565.187259500In StockNKK Switches5.187259 @ 500
