mpn:
brand:
manufacturer:
MPN:
Description:

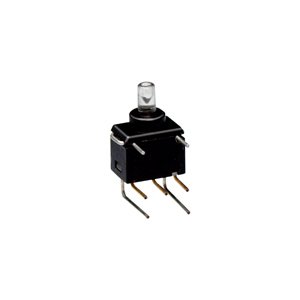

Switch,Toggle,SPDT,ON-(ON),Clear Act,Illum,Green LED,0.4A,28VAC/DC,R/A PC
Weight:
0.044
Weight:
0.044 LB
Preferred Price:
13.51
Price:
13.51
Min Simple Price:
6.6
Absolute Min Price:
10.14
Min Price:
10.14
qty:
21
simpleSku:
NTM4OA:::GB15JHF
sku:
NTM4OA::2O:GB15JHF@y0
condition:
11
seller:
TME
amzMan:
nkk switches
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| AC contacts rating @R | 0.1A / 28V AC |
| Actuator Marking | No Marking |
| Actuator Type | Round, Plunger |
| Body colour | black |
| Body dimensions | 7.8x7.6x4.9mm |
| Body material | polyamide |
| Button shape | round |
| Category | Switches |
| Circuit, Contacts configuration | SPDT |
| Color - Actuator/Cap | Clear |
| Contact material | phosphor bronze |
| Contact plating | gold-plated |
| Current Rating (Amps) | 0.4VA (AC/DC) |
| DC contacts rating @R | 0.1A / 28V DC |
| Description | SWITCH PUSH SPDT 0.4VA 28V |
| Detailed Description | Pushbutton Switch SPDT Standard, Illuminated Through Hole, Right Angle |
| Digi-Key Part Number | 360-2796-ND |
| Electrical life, Mechanical durability | 50000 cycles |
| Electrical Life, Mechanical Life | 50,000 Cycles |
| Features, Ingress Protection, Panel Cutout Dimensions | - |
| Illumination | LED |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 2.1 VDC |
| Key stroke | 1.1mm |
| Kind of material | fiber glass reinforced |
| Leads | angled, |
| Manufacturer Product Number | GB15JHF |
| Manufacturer series, Series | GB |
| Manufacturer Standard Lead Time | 43 Weeks |
| Manufacturer, Mfr | NKK SWITCHES |
| Max. contact resistance: | 80m? |
| Min. insulation resistance | 500M? |
| Mounting | THT |
| Mounting Type | Through Hole, Right Angle |
| Number of positions | 2 |
| Number of terminals | 5 |
| Operating Force | 1.7N |
| Operating Temperature | -25?C ~ 55?C |
| Operating temperature | -25...55?C |
| Package | Box |
| Poles number, Stable positions number | 1 |
| Product Status | Active |
| Switch Function | On-Mom |
| Switching method | ON-(ON) |
| Termination Style | PC Pin |
| Type | Standard, Illuminated |
| Type of switch | push-button |
| Voltage Rating - AC, Voltage Rating - DC | 28 V |
