NKK Switches GW12LJPCF

B005TAPHA4

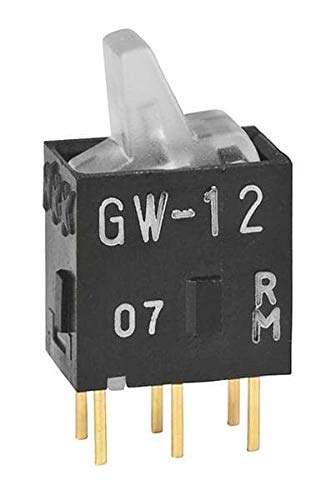

NKK SWITCHES GW12LJPCF Switch, Rocker, SPDT, 0.1A, 28VAC

NKK SWITCHES GW12LJPCF Switch, Rocker, SPDT, 0.1A, 28VACzoom

Attributes

Key Value
AC contacts rating @R0.1A / 28V AC
Actuator MarkingNo Marking
Actuator TypePaddle - Illuminated
Base Product NumberGW12LJ
Body colourblack
Body dimensions4.5x7x7mm
Body materialpolyamide
Button shaperectangular
CategorySwitches
CircuitSPDT
Color - Actuator/CapClear
Contact FormSPDT
Contact materialphosphor bronze
Contact platinggold-plated
Contacts configurationSPDT
Current Rating0.1 mA
Current Rating (Amps)0.4VA (AC/DC)
DC contacts rating @R0.1A / 28V DC
Electrical Life50,000 Cycles
Electrical life50000 cycles
FeaturesSealed - Flux Protection
IlluminationLED
Illumination Type, ColorLED, Red/Green
Illumination Voltage (N.2 VDC
Ingress Protection-
Key button colourtransparent
Kind of materialfiber glass reinforced
Leadsfor soldering,
ManufacturerNKK SWITCHES
Manufacturer seriesGW
Max. contact resistance:80m?
Mechanical durability50000 cycles
Mechanical Life50,000 Cycles
MfrNKK SWITCHES
Min. insulation resista.500M?
MountingTHT
Mounting TypeThrough Hole
Number of positions2
Number of terminals6
Operating Force1N
Operating Temperature-25?C ~ 55?C
Operating temperature-25...55?C
OperationON-NONE-ON
PackageTray
Panel Cutout Dimensions-
Poles number1
Primary TypeSwitch
Product StatusActive
SeriesGW Series, GW
Stable positions number2
Switch FunctionON-ON
Switching methodON-ON
Terminal pitch2.54mm
Termination StylePC Pin
TypeThin Paddle
Type of switchROCKER
Voltage Rating - AC28 V
Voltage Rating - DC28 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
TMEGW12LJPCF5.251In StockNKK SWITCHES5.25 @ 1
us.rs-online.com703655967.531In StockNKK Switches7.53 @ 1
Digi-Key10148089.0735945In StockNKK Switches9.0735 @ 1
thumbzoomNewark09X961411.541In StockNKK SWITCHES11.54 @ 1
