- mpnHB16SKW01-C
- brandname: NKK Switches
- manufacturername: NKK Switches

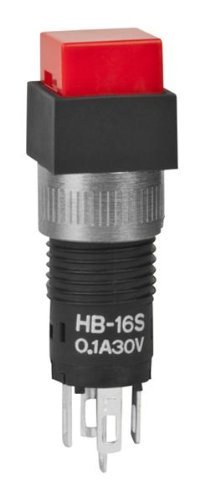

Pushbutton Switches SPDT ON-ON SQUARE RED CAP .1A (1 piece)
- PartNumber: HB16SKW01-C
- PackageQuantity: 1
- Manufacturer: NKK Switches
- Label: NKK Switches
Attributes
| Key | Value |
|---|
| Actuator | Square |
| Actuator Color | Red |
| Actuator Marking | No Marking |
| Actuator Type | Square, Square, Button |
| Alternate Part No. | 633-HB16SKW01-C |
| Base Product Number | HB16SKW01 |
| Brand | NKK Switches |
| Category | Switches |
| Circuit | SPDT |
| Color - Actuator/Cap | Red |
| Contact Form | SPDT |
| Contact Plating | Silver |
| Current Rating | 0.1 A |
| Current Rating (Amps) | 100mA (AC/DC) |
| Dimensions, Cutout, Inc. | 8 Dia. mm |
| Electrical Life | 50,000 Cycles |
| Features | - |
| Housing Material | Polyamide, Glass Fiber . |
| Illumination Type, Color | - |
| Illumination Voltage (N. | - |
| Ingress Protection | - |
| Manufacturer | NKK Switches |
| Manufacturer Part No. | HB16SKW01-C |
| Mechanical Life | 100,000 Cycles |
| Mfr | NKK Switches |
| Mounting Style | Panel |
| Mounting Type | Panel Mount, Front, Pan. |
| Operating Temperature | -25?C ~ 70?C |
| Operation | On-On |
| Package | Box |
| Panel Cutout Dimensions | Circular - 8.00mm Dia |
| Power Rating | 0.1 VA |
| Primary Type | Switch |
| Product Category | Pushbutton Switches |
| Product Status | Active |
| Series | HB, HB Series |
| Switch Function | ON - ON, On-On |
| Terminal Seal | Epoxy |
| Termination | Solder Lugs |
| Termination Style | Solder Lug |
| Type | Sub-Mini Pushbutton, St. |
| Voltage Rating | 30 V |
| Voltage Rating - AC | 30 V |
| Voltage Rating - DC | 30 V |
| Voltage Rating AC | 30 V |
| Voltage Rating DC | 30 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | swatee.com | HB16SKW01-C | 9.53 | 1 | 14 | | NKK Switches | | 9.53 @ 1 |
| Digi-Key | 2104182 | 10.92 | 1 | In Stock | 187 | NKK Switches | | 10.92 @ 1 |
| us.rs-online.com | 70192704 | 10.92 | 1 | In Stock | | NKK Switches | | 10.92 @ 1 |
| Newark | 09X9903 | 16.34 | 1 | In Stock | | NKK SWITCHES | | 16.34 @ 1 |
