NKK Switches LB15SGW01-B

B00KSVWOXW

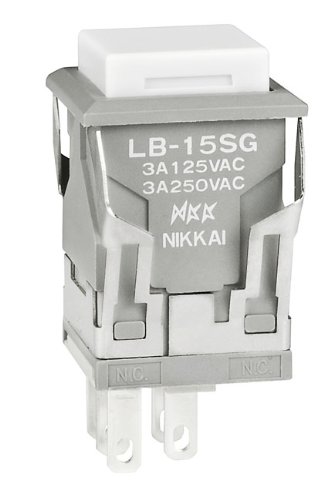

NKK Switches Part Number LB15SGW01-B

NKK Switches Part Number LB15SGW01-Bzoom

Attributes

Key Value
Actuator MarkingNo Marking
Actuator TypeSquare, Button
Base Product NumberLB15SGW
CategorySwitches
CircuitSPDT
Color - Actuator/CapWhite
Contact FormSPDT
Current Rating3 A
Current Rating (Amps)3A (AC/DC)
DescriptionSWITCH PUSHBUTTON SPDT .
Detailed DescriptionPushbutton Switch SPDT .
Digi-Key Part NumberLB15SGW01-B-ND
Electrical Life100,000 Cycles
Features-
Illumination Type, Color-
Illumination Voltage (N.-
Ingress Protection-
ManufacturerNKK Switches
Manufacturer Product Nu.LB15SGW01-B
Manufacturer Standard L.26 Weeks
Mechanical Life1,000,000 Cycles
MfrNKK Switches
Mounting TypePanel Mount, Snap-In
Operating Temperature-25?C ~ 70?C
OperationON-(ON)
PackageBulk
Panel Cutout DimensionsSquare - 16.20mm x 16.2.
Primary TypeSwitch
Product StatusActive
SeriesLB
Switch FunctionOn-Mom
Termination StyleSolder, Quick Connect -.
TypePushbutton, Standard
Voltage Rating125 V
Voltage Rating - AC125 V
Voltage Rating - DC30 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomDigi-Key21048209.8881In StockNKK Switches9.888 @ 1
us.rs-online.com7105428812.191In StockNKK Switches12.19 @ 1
Newark10X201118.111In StockNKK SWITCHES18.11 @ 1
