300H-2-2-145/435-66

B0BM3MH22Y

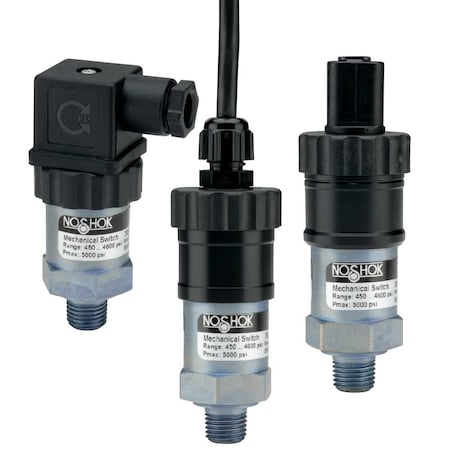

Mechanical Pressure Switch, 1 SPST Switch, Normally Closed, 1/4 NPT Male Conn, 145 psig to 435 psig Adjustment, Deutsch Integral 2-Pin (DT04-2P)

Mechanical Pressure Switch, 1 SPST Switch, Normally Closed, 1/4 NPT Male Conn, 145 psig to 435 psig Adjustment, Deutsch Integral 2-Pin (DT04-2P)zoom

Attributes

Key Value
AC Contact Rating6 A
Ambient Temp. Range-4 to 176?F
DC Contact Rating6 A
Electrical Connection2-Pin Male
Housing MaterialSteel
IP RatingIP67
ItemMechanical Switch
Max. Pressure870 to 5000 psig
Media Temp. Range-4 to 176?F
Pressure Switch ActionSnap with Adjustable Hy.
Pressure Switch Applica.Hydraulics and Pneumati.
Pressure Switch Electri.Single Pole Single Thro.
Pressure Switch Factory.Field Adjustable and/or.
Process Connection1/4" NPT
Series300
Wetted MaterialsNBR
