NTE Electronics 25-E1100-04

B008UTWASS

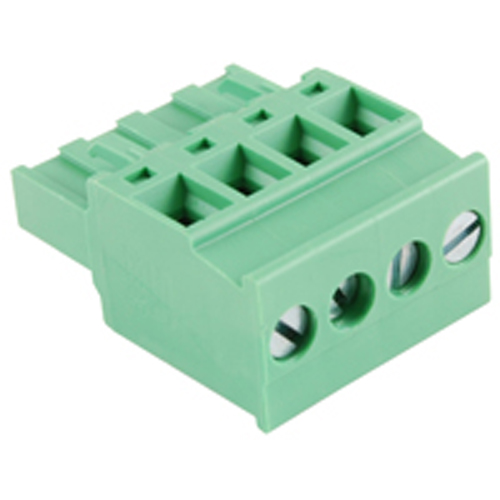

NTE Electronics 25-E1100-04 E1100 Series Eurostyle Terminal Block, Plug Vertical, 15 Amp, 30-12 AWG Wire Range, 4 Pole, 5.08 mm Pitch, 300V

NTE Electronics 25-E1100-04 E1100 Series Eurostyle Terminal Block, Plug Vertical, 15 Amp, 30-12 AWG Wire Range, 4 Pole, 5.08 mm Pitch, 300Vzoom

Attributes

Key Value
CategoryConnectors, Interconnec.
ColorGreen
Contact Material-
Contact Mating Finish-
Contact Tail Length-
Current - IEC-
Current - UL15 A
DescriptionTERMINAL BLOCK EUROSTYLE
Detailed Description4 Position Terminal Blo.
Digi-Key Part Number2368-25-E1100-04-ND
FeaturesRetention Latches (Wire.
Header Orientation-
Housing Material-
Ingress Protection-
Insulation Height1.026" (26.05mm)
ManufacturerNTE Electronics, NTE El.
Manufacturer Product Nu.25-E1100-04
Material Flammability R.-
MfrNTE Electronics, Inc
Mounting TypeFree Hanging (In-Line)
Number of Levels1
Number of Positions4
Operating Temperature-
PackageBag
Part Number25-E1100-04
Pitch0.200" (5.08mm)
Plug Wire Entry90?
Positions Per Level4
Product StatusActive
Product TypeTerminal Blocks & Strips
Screw SizeM2.5
Series25-E1100
Termination StyleScrew
Torque - Screw0.51 Nm (4.5 Lb-In)
TypePlug, Female Sockets
Voltage - UL300 V
Wire Gauge or Range - A.12-30 AWG
Wire Gauge or Range - m.-
Wire Strip Length7-8mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomamericanmicrosemi.com25-E1100-042.25123NTE2.25 @ 1
thumbzoomjensentools.com101325912.31143NTE Electronics2.31 @ 1
ntepartsdirect25-E1100-042.42141NTE Electronics2.42 @ 1
Hawk Electronics25-E1100-047.11In StockNTE7.1 @ 1
thumbzoomEIO25-E1100-049.14141NTE Electronics9.14 @ 1
AmazonSCB008UTWASS9.33143NTE Electronics9.33 @ 1
thumbzoomDigi-Key1164422813.67134NTE Electronics, Inc13.67 @ 1
