NTE Electronics 25-E1100-02

B008UTW9YI

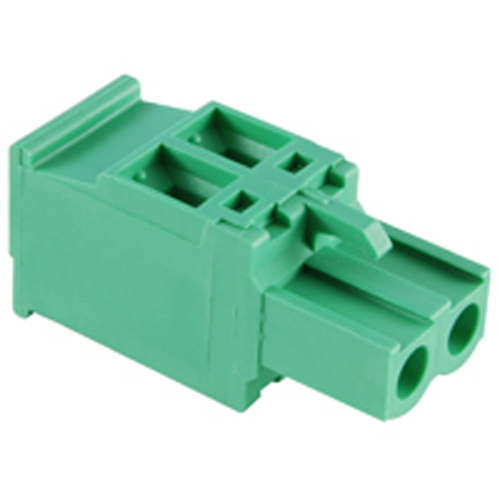

NTE Electronics 25-E1100-02 E1100 Series Eurostyle Terminal Block, Plug Vertical, 15 Amp, 30-12 AWG Wire Range, 2 Pole, 5.08 mm Pitch, 300V

NTE Electronics 25-E1100-02 E1100 Series Eurostyle Terminal Block, Plug Vertical, 15 Amp, 30-12 AWG Wire Range, 2 Pole, 5.08 mm Pitch, 300Vzoom

Attributes

Key Value
CategoryConnectors, Interconnec.
ColorGreen
Contact Material-
Contact Mating Finish-
Contact Tail Length-
Current - IEC-
Current - UL15 A
DescriptionTERMINAL BLOCK EUROSTYLE
Detailed Description2 Position Terminal Blo.
Digi-Key Part Number2368-25-E1100-02-ND
FeaturesRetention Latches (Wire.
Header Orientation-
Housing Material-
Ingress Protection-
Insulation Height1.026" (26.05mm)
ManufacturerNTE Electronics, NTE El.
Manufacturer Product Nu.25-E1100-02
Material Flammability R.-
MfrNTE Electronics, Inc
Mounting TypeFree Hanging (In-Line)
Number of Levels1
Number of Positions2
Operating Temperature-
PackageBag
Part Number25-E1100-02
Pitch0.200" (5.08mm)
Plug Wire Entry90?
Positions Per Level2
Product StatusActive
Product TypeTerminal Blocks & Strips
Screw SizeM2.5
Series25-E1100
Termination StyleScrew
Torque - Screw0.51 Nm (4.5 Lb-In)
TypePlug, Female Sockets
Voltage - UL300 V
Wire Gauge or Range - A.12-30 AWG
Wire Gauge or Range - m.-
Wire Strip Length7-8mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomamericanmicrosemi.com25-E1100-021.131112NTE1.13 @ 1
thumbzoomjensentools.com101325891.47168NTE Electronics1.47 @ 1
ntepartsdirect25-E1100-021.54164NTE Electronics1.54 @ 1
thumbzoomDigi-Key116463892.0410505NTE Electronics, Inc2.04 @ 10
Hawk Electronics25-E1100-023.6227NTE3.6 @ 2
thumbzoomEIO25-E1100-026.81164NTE Electronics6.81 @ 1
