NTE Electronics 25-E1100-05

B008UTWB3W

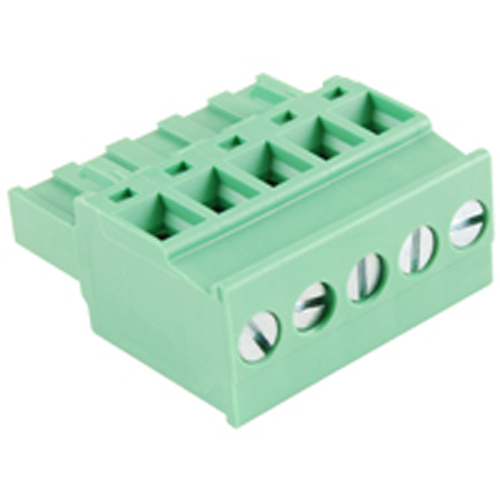

NTE Electronics 25-E1100-05 E1100 Series Eurostyle Terminal Block, Plug Vertical, 15 Amp, 30-12 AWG Wire Range, 5 Pole, 5.08 mm Pitch, 300V

NTE Electronics 25-E1100-05 E1100 Series Eurostyle Terminal Block, Plug Vertical, 15 Amp, 30-12 AWG Wire Range, 5 Pole, 5.08 mm Pitch, 300Vzoom

Attributes

Key Value
CategoryConnectors, Interconnec.
ColorGreen
Contact Material-
Contact Mating Finish-
Contact Tail Length-
Current - IEC-
Current - UL15 A
DescriptionTERMINAL BLOCK EUROSTYLE
Detailed Description5 Position Terminal Blo.
Digi-Key Part Number2368-25-E1100-05-ND
FeaturesRetention Latches (Wire.
Header Orientation-
Housing Material-
Ingress Protection-
Insulation Height1.026" (26.05mm)
ManufacturerNTE Electronics, NTE El.
Manufacturer Product Nu.25-E1100-05
Material Flammability R.-
MfrNTE Electronics, Inc
Mounting TypeFree Hanging (In-Line)
Number of Levels1
Number of Positions5
Operating Temperature-
PackageBag
Part Number25-E1100-05
Pitch0.200" (5.08mm)
Plug Wire Entry90?
Positions Per Level5
Product StatusActive
Product TypeTerminal Blocks & Strips
Screw SizeM2.5
Series25-E1100
Termination StyleScrew
Torque - Screw0.51 Nm (4.5 Lb-In)
TypePlug, Female Sockets
Voltage - UL300 V
Wire Gauge or Range - A.12-30 AWG
Wire Gauge or Range - m.-
Wire Strip Length7-8mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com25-E1100-052.142046NTE Electronics2.14 @ 20
thumbzoomjensentools.com101325922.73136NTE Electronics2.73 @ 1
thumbzoomamericanmicrosemi.com25-E1100-052.82163NTE2.82 @ 1
ntepartsdirect25-E1100-052.86134NTE Electronics2.86 @ 1
Hawk Electronics25-E1100-058.91In StockNTE8.9 @ 1
AmazonB008UTWB3W10.0146NTE Electronics10.0 @ 1
thumbzoomEIO25-E1100-0510.36134NTE Electronics10.36 @ 1
thumbzoomDigi-Key1164394514.09126NTE Electronics, Inc14.09 @ 1
