NTN 6002LLUC3/L627

B007IBUSZQ

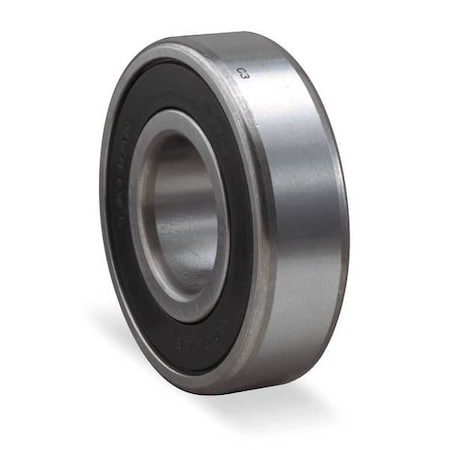

Radial Bearing, Double Seal, 15mm Bore

Radial Bearing, Double Seal, 15mm Borezoom

Attributes

Key Value
ABEC Rating1
ABEC Tolerance1
Ball MaterialAlloy Steel
Bearing Industry Number6002
Bearing MaterialSteel
Bearing TypeDouble Contact Sealed
Bore Dia.15 mm
Bore Diameter15 mm
Bore Diameter Tolerance+0/-0.008 mm
BrandNtn
Cage MaterialSteel
Cage TypePressed
ClosureDouble Sealed
Current Stock47
Dynamic Radial Load Cap.6,200 N
Fillet Radius0.3 mm
FinishChrome Plated
Includes Retaining RingNo
Industry Number3VX630
International ShippingNo
ISO RatingClass 0
ItemRadial Ball Bearing
Lead TimeExpected to ship in 1-2.
Load DirectionRadial
Lubricant MaterialPolyrex EM Grease
LubricationPolyrex EM Grease
Max. RPM15,000 RPM
Maximum Speed15,000 RPM
Maximum Temperature120 Degrees C
Minimum Temperature-40 Degrees C
Mpn6002LLUC3/L627
Number of RowsOne
Outer Ring Width9 mm
Outside Dia.32 mm
Outside Dia. Tolerance+0/-0.011mm
Outside Diameter32 mm
Outside Diameter Tolera.+0/-0.011 mm
Retaining Ring DiameterNot Applicable
Retaining Ring GrooveNo
Retaining Ring ThicknessNot Applicable
Ring MaterialAlloy Steel
Seal MaterialNitrile Rubber
Seal TypeContact
Seal/Shield TypeDouble Contact Sealed
Single Row/Double RowSingle Row
SKUZO-G2761297
Static Load Capacity635 lb
Static Radial Load Capa.2,840 N
SubCategoryPower Transmission
System of MeasurementMetric
Temp. Range-13 Degrees to 250 Deg.
Width9 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
grainger.caWWG4ZXA817.81853731In StockNTN0.0717.8185373 @ 1
thumbzoomsustainablesupply.comC169053122.531In StockNTN0.0722.53 @ 1
thumbzoomZoroG276129722.89182Ntn0.0722.89 @ 1
thumbzoomMisumi USA6002LLUC3/L62731.731In Stock22NTN31.73 @ 1
thumbzoomsimsupply.comZO-G276129733.06147Ntn33.06 @ 1
thumbzoomRaptor SuppliesAE2XZL35.5987711In StockNTN35.598771 @ 1
