NTN 6304ZZC3/L627

mpn6304ZZC3/L627
brandname: Ntn
manufacturername: Ntn

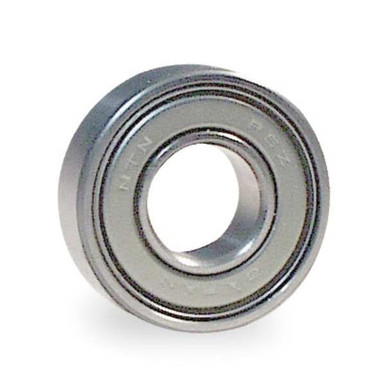

Radial Ball Bearing, Shielded, 20mm Bore

Radial Ball Bearing, Shielded, 20mm Bore

zoom

Brand: NTN
PartNumber: 6304ZZC3/L627
Model: 6304ZZC3/L627
PackageQuantity: 1
Binding: Misc.
Manufacturer: NTN
Label: NTN

Attributes

Key	Value
Ball Material	Alloy Steel
Bearing Industry Number	6304
Bearing Type	Shielded
Bore Dia.	20 mm
Bore Diameter	20 mm
Brand	Ntn
Cage Material	Steel
Cage Type	Pressed
Closure	Double Shielded
Current Stock	197
Dynamic Load Capacity	3.6 lb
Dynamic Radial Load Cap.	17,600 N
Fillet Radius	1.1 mm
Finish	Chrome Plated
Includes Retaining Ring	No
Industry Number	3VX630
International Shipping	No
ISO Rating	Class 0
Item	Radial Ball Bearing
Lead Time	Expected to ship in 1-2.
Load Direction	Radial
Lubricant Material	SRI 2 Grease
Lubrication	SRI#2 Grease
Maximum Speed	14,000 RPM
Maximum Temperature	120 Degrees C
Minimum Temperature	-40 Degrees C
Mpn	6304ZZC3/L627
Number of Rows	One
Outer Ring Width	15 mm
Outside Dia.	52 mm
Outside Diameter	52 mm
Retaining Ring Diameter	Not Applicable
Retaining Ring Groove	No
Retaining Ring Thickness	Not Applicable
Ring Material	Alloy Steel
Seal Material	Synthetic Rubber Molded.
Seal/Shield Type	Double Shielded
Shield Material	Metal
Single Row/Double Row	Single Row
SKU	ZO-G1828793
Static Load Capacity	1,770 lb
Static Radial Load Capa.	7,900 N
SubCategory	Power Transmission
System of Measurement	Metric
Temp. Range	-20 Degrees to 250 Deg.
Width	15 mm

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G1828793	14.39	1	323		Ntn	0.25	14.39 @ 1
	grainger.ca	WWG6L036	16.90402174	1	In Stock		NTN	0.25	16.90402174 @ 1
	sustainablesupply.com	C1698653	19.38	1	In Stock		NTN	0.25	19.38 @ 1
	simsupply.com	ZO-G1828793	23.71	1	197		Ntn		23.71 @ 1
	Misumi USA	6304ZZC3/L627	29.86	1	In Stock	18	NTN		29.86 @ 1
	Raptor Supplies	AE9NLB	34.056828	1	In Stock		NTN		34.056828 @ 1
