NTN 687

B007RHG63O

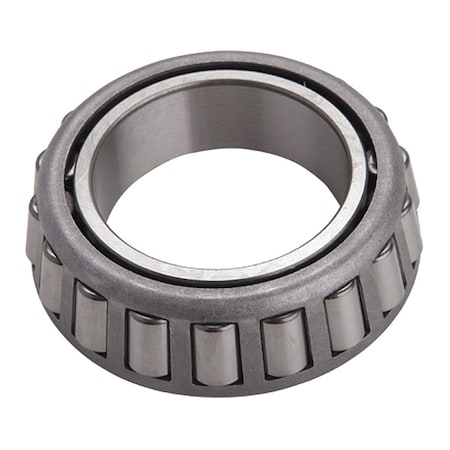

NTN 687 Tapered Roller Bearing, Single Cone, Standard Tolerance, Straight Bore, Steel, Inch, 4" Bore, 1 5/8" Width

NTN 687 Tapered Roller Bearing, Single Cone, Standard Tolerance, Straight Bore, Steel, Inch, 4" Bore, 1 5/8" Widthzoom

Attributes

Key Value
Bearing Industry Number687
Bore Dia. (In.)4 in
Bore Diameter4 in
Bore TypeCylindrical
Compatible Cup Grainger.55PY25
Compatible Cup Manufact.672
Cone Width1.625 in
Dynamic Load Capacity247 kN
Dynamic Load Capacity (.55,000 lb
Inside Diameter4 in
ItemTapered Roller Bearing .
Max. Shaft Fillet Radiu.0.14 in
Maximum Temperature250 Degrees F
Minimum Temperature-40 Degrees F
Outside Diameter6.299 in
Raceway Ring ShapeTapered Roller
Ring MaterialAlloy Steel
Ring Material Grade52100
Roller Material Grade52100
Shaft Fillet Radius0.137 in
Specifications/Environm.Standard
StandardsABMA
Static Load Capacity340 kN
Static Load Capacity (L.87,500 lb
System of MeasurementInch
Temp. Range (F)-40 Degrees to 250 Deg.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialzone.com687106.952In StockNTN1.0106.95 @ 2
thumbzoomZoroG0190936125.991In StockNtn4.85125.99 @ 1
motionindustries.com00655471210.011In StockNTN210.01 @ 1
thumbzoomMisumi USA687246.861In Stock18NTN246.86 @ 1
thumbzoomMRO Supply284379529.111In StockNTN Bearing529.11 @ 1
