NTN UCFU-1.1/2MFG1

B01IWI2NWY

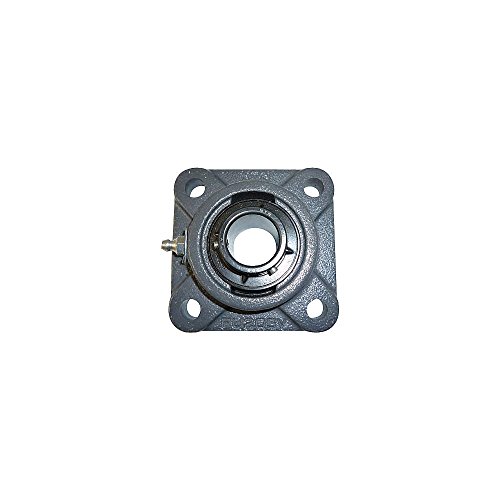

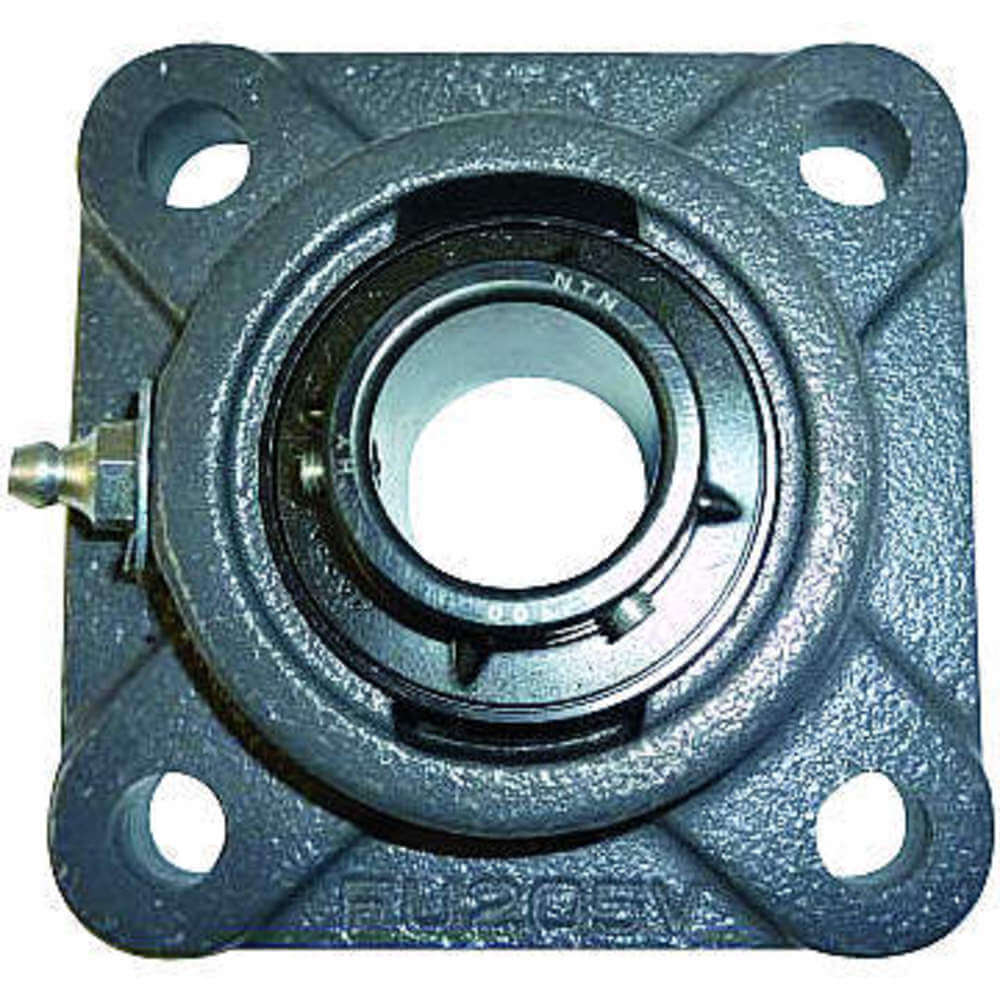

Flange Bearing, 4-Bolt, Ball, 1-1/2" Bore

Flange Bearing, 4-Bolt, Ball, 1-1/2" Borezoom

Attributes

Key Value
Back Side to Center Wid.0.937 in
Bearing Housing Materia.Cast Iron
Bearing Insert Material52100 Chrome Steel
Bearing Insert TypeBall
Bearing LubricationShell Alvania #3 or NLG.
Bolt Hole Center-to-Cen.4 in
Bolt Size7/16 in
Bore Dia.1 1/2 in
Bore Diameter2 1/2 in
Dynamic Load Capacity6,550 lb
Finishblack oxide
Item4 Bolt Flange Bearing
Locking TypeSet Screw
Mount Hole Center-to-Ce.4 in
Mount Hole Center-to-Ce.4 in
Mount Hole Size33/64 in
Mounting Bolt Size1/2 in
Overall Height2 9/64 in
Overall Length5 3/32 in
Overall Width5 3/32 in
SeriesStandard Duty with Food.
Shaft Locking TypeSet Screws
Static Load Capacity4,000 lb
Temp. Range-10 Degrees to 95 Degr.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialzone.comUCFU-1.1/2MFG1103.292In StockNTN1.0103.29 @ 2
thumbzoomZoroG9798747138.991In Stock13Ntn4.5138.99 @ 1
thumbzoomMRO Supply5046325162.651In StockNTN Bearing162.65 @ 1
motionindustries.com06225315210.491In StockNTN210.49 @ 1
thumbzoomRaptor SuppliesAH4RDC322.3554751In StockNTN322.355475 @ 1
