NTN UCPL-1.7/16M

B0763KK8Z2

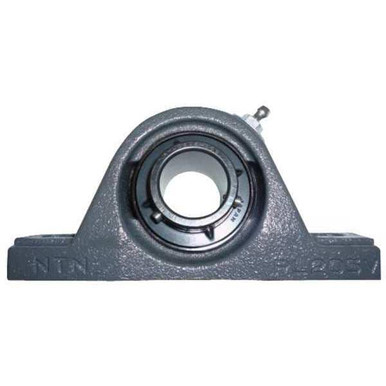

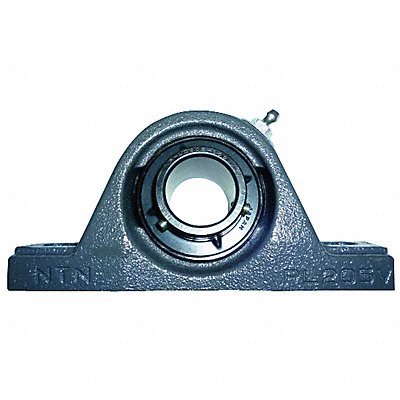

Pillow Block Bearing, Ball, 1-7/16" Bore

Pillow Block Bearing, Ball, 1-7/16" Borezoom

Attributes

Key Value
Base Height0.72 in
Base Width1.874 in
Bolt Size1/2 in
Bore Dia.1 7/16 in
Bore Diameter1 7/16 in
BrandNtn
Center Height1 51/64 in
Current Stock3
Dimension A1 7/8 in
Dimension B1 11/16 in
Dimension D1 7/16 in
Dimension E144 mm
Dimension H1 13/16 in
Dimension H123/32 in
Dimension H23 19/32 in
Dimension J5 1/8 in
Dimension L6 9/16 in
Dimension N9/16 in
Dimension S11/16 in
Inner Ring Width1.689 in
International ShippingNo
Lead TimeExpected to ship in 1-2.
Mount Hole Center-to-Ce.5 1/8 in
Mount Hole Size0.563 in x 0.969 in
Mounting Bolt Size1/2 in
MpnUCPL-1.7/16M
Overall Height3 19/32 in
Overall Length6 9/16 in
Overall Width1 7/8 in
SKUZO-G2180053
SubCategoryPower Transmission
UPC4547359223224

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG218005398.09116Ntn3.998.09 @ 1
Grainger5RYW099.91In StockNTN99.9 @ 1
AmazonSCB0763KK8Z2108.181In StockNTN108.18 @ 1
thumbzoomsimsupply.comZO-G2180053116.1913Ntn116.19 @ 1
thumbzoomRaptor SuppliesAE6HLF169.64725051In StockNTN169.6472505 @ 1
