NTN UELFU-1.3/16M

B01L2I8WYO

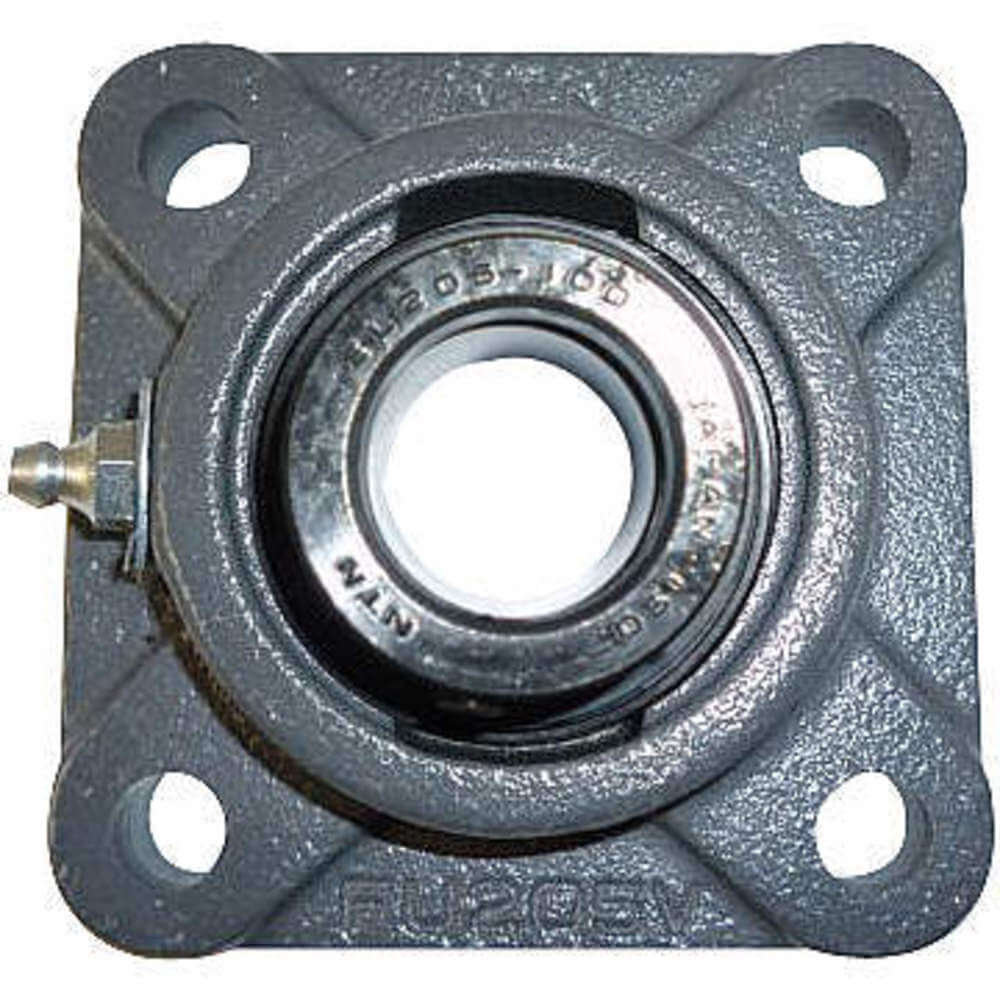

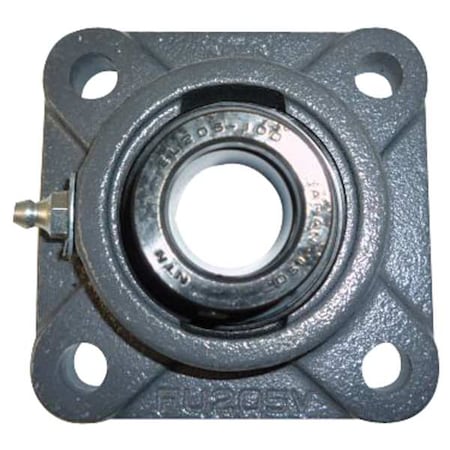

Flange Bearing, 4-Bolt, Ball, 1-3/16" Bore

Flange Bearing, 4-Bolt, Ball, 1-3/16" Borezoom

Attributes

Key Value
ApplicationAgriculture, Automotive.
Back Side to Center Wid.0.78 in
Bearing Housing Materia.Cast Iron
Bearing Insert Material52100 Chrome Steel, All.
Bearing Insert TypeBall, Radial Ball
Bearing Material Grade52100
Bolt Hole Center-to-Cen.3 1/4 in
Bolt Size3/8 in
Bore Dia.1 3/16 in
Bore Diameter1 3/16 in
Bore TypeCylindrical
BrandNtn
ClosureDouble Sealed
Current Stock9
Dimension A15/16 in
Dimension Ao1 31/32 in
Dimension D1 3/16 in
Dimension J3 1/4 in
Dimension L4 9/32 in
Dimension N29/64 in
Dimension S23/32 in
Dynamic Load Capacity4,384 lbf
Flange Thickness0.625 in
Housing MaterialCast Iron
Housing Material FinishBlack Oxide
Housing TypeSquare
Included BearingA-UEL206-103D1
Includes(4) Set Screws
International ShippingNo
Item4 Bolt Flange Bearing
Lead TimeExpected to ship in 1-2.
Lubricant MaterialNLGI #3 Equivalent
Lubrication OpeningsOne Zirc Fitting
Maximum Speed4,900 RPM
Maximum Temperature250 Degrees F
Minimum Temperature-40 Degrees F
Mount Hole Center-to-Ce.3.25 in
Mount Hole Center-to-Ce.3.25 in
Mount Hole Size0.453 in
Mounting Bolt Size7/16 in
MpnUELFU-1.3/16M
Number of Mount Holes4
Overall Height1 31/32 in, 4.281 in
Overall Length4 9/32 in, 4.281 in
Overall Width4 9/32 in, 1.968 in
Rolling Element Rows1
Seal MaterialNitrile Rubber
Seal TypeContact
SeriesStandard Duty
Shaft Locking TypeEccentric Collar
SKUZO-G3236441
Static Radial Load Capa.2,540 lbf
SubCategoryPower Transmission
System of MeasurementInch

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG323644193.79126Ntn2.993.79 @ 1
thumbzoomsimsupply.comZO-G3236441116.6619Ntn116.66 @ 1
grainger.caWWG5RZD1128.184597661In StockNTN2.9128.18459766 @ 1
thumbzoomRaptor SuppliesAE6HNJ149.08801051In StockNTN149.0880105 @ 1
