NTN Bearing 6900LLB

mpn6900LLB
brandname: NTN BEARING
manufacturername: NTN BEARING

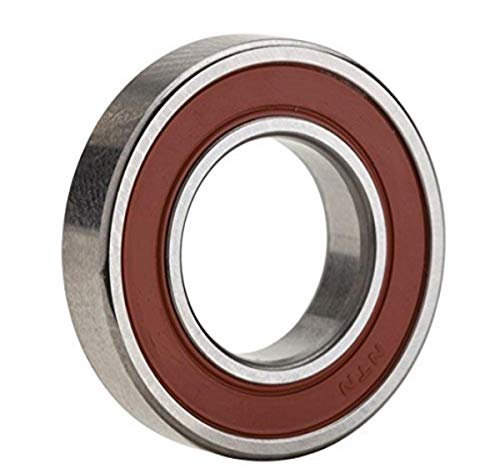

NTN Bearing 6900LLB Single Row Deep Groove Radial Ball Bearing, Non-Contact, Normal Clearance, Steel Cage, 10 mm Bore ID, 22 mm OD, 6 mm Width, Double Sealed

NTN Bearing 6900LLB Single Row Deep Groove Radial Ball Bearing, Non-Contact, Normal Clearance, Steel Cage, 10 mm Bore ID, 22 mm OD, 6 mm Width, Double Sealed

zoom

Brand: NTN Bearing
PartNumber: 6900LLB
Model: NTN 6900LLB
PackageQuantity: 1
Binding: Misc.
Manufacturer: NTN Bearing
Label: NTN Bearing

Attributes

Key	Value
bearing material:	High Carbon Chrome Steel
Bore	0.394 Inch \| 10 Millime.
Bore type	Round
bore type:	Round
Brand	NTN
Cage Material	Steel
cage material:	Steel
Category	Single Row Ball Bearings
Category - BDI	Single Row Ball Bearing
closure type:	Double Sealed
dynamic load capacity:	2700 N
EAN	4547359006483
Enclosure	Double Sealed, 2 Seals
Enclosure Type	Non-Contact Seal
fillet radius:	0.3 mm
finish/coating:	Uncoated
Harmonized Tariff Code	8482.10.50.68
Inch - Metric	Metric
inner ring width:	6 mm
Internal Clearance	C0-Medium
internal clearance:	CN
Internal Special Featur.	No
Keyword String	Ball
Limiting speed - grease	30000 rpm
Long Description	10MM Bore; 22MM Outside.
Manufacturer Item Number	6900LLB/2AS
Manufacturer Name	NTN
Material	High Carbon Chrome Steel
Maximum Capacity / Fill.	No
maximum rpm (grease):	30000 rpm
maximum rpm:	30000 rpm
Minimum Buy Quantity	N/A
Noun	Bearing
Operating temperature r.	-40 to 250 F
operating temperature r.	-40 to 120
Outer Race Width	0.236 Inch \| 6 Millimet.
outer ring width:	6 mm
Outside Diameter	0.866 Inch \| 22 Millime.
Precision Class	ABEC 1 \| ISO P0
precision rating:	ISO Class 0
price	$ 46.40 / each
Product Group - BDI	B00308
Radial internal clearan.	CN
Rolling Element	Ball Bearing
row type & fill slot:	Single Row Non-Fill Slot
Seal material	Nitrile rubber
Seal Type	2 Seals
Seal type	Non-Contact
series:	69
Snap Ring	No
snap ring included:	Without Snap Ring
static load capacity:	1270 N
title	6900LLB
UNSPSC	31171504
Weight / kgm	0.009
Weight / Kilogram	0.009
Weight / LBS	0.021

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	industrialzone.com	6900LLB	36.4	6	In Stock		NTN	1.0	36.4 @ 6
	Lily Bearing	6900LLB	39.44	1	In Stock		NTN	0.0198	39.44 @ 1
	BDI Express	1209680	41.15999706	1	In Stock		NTN	0.0198	41.15999706 @ 1
	motionindustries.com	03092347	48.19	1	In Stock		NTN		48.19 @ 1
	Purvis	6900LLB	52.74	1	In Stock		NTN Bearing Corporation		52.74 @ 1
	MRO Supply	278196	54.88	3	In Stock		NTN Bearing		54.88 @ 3
