NTN DS209TTR6JA

B01LZ4H3S1

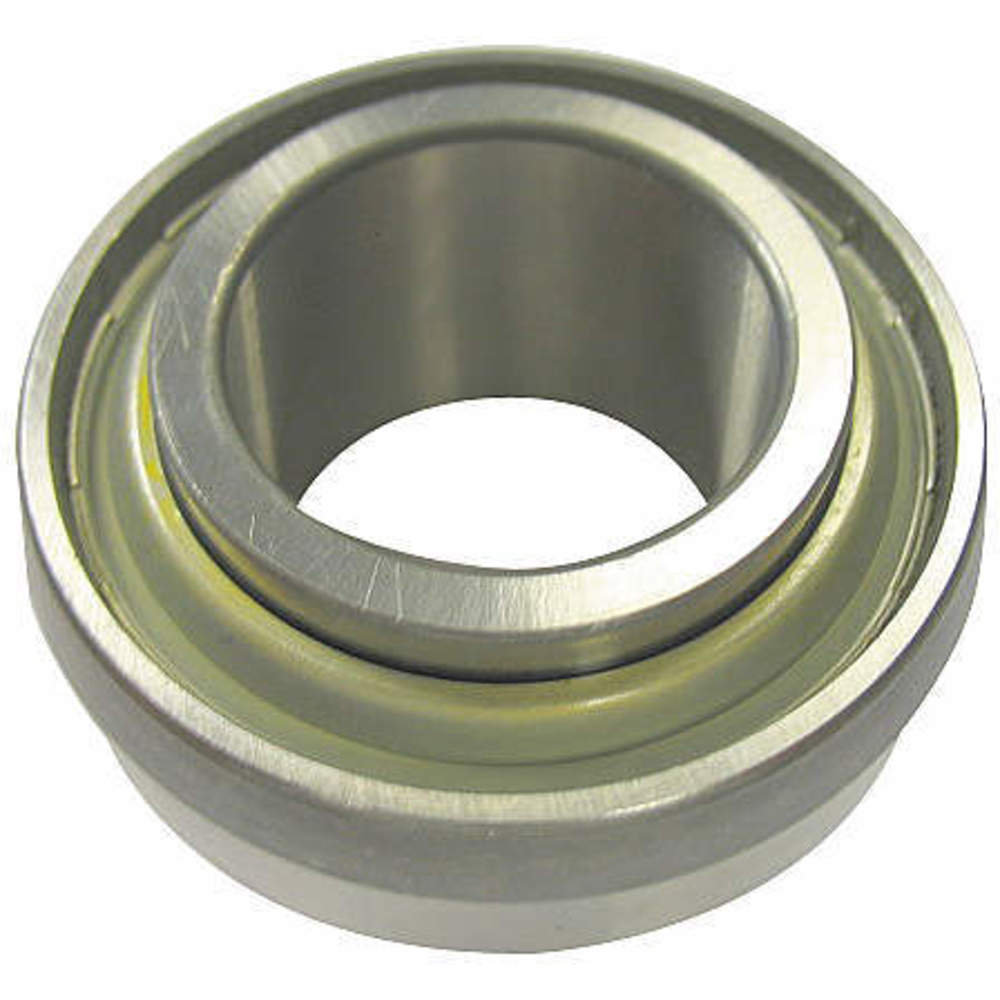

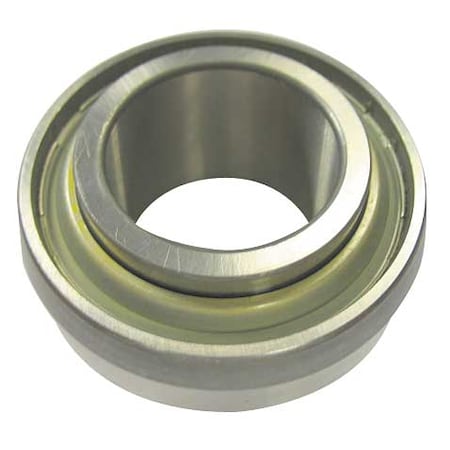

NTN DISC HARROW (DS209TTR6JA)

NTN DISC HARROW (DS209TTR6JA)zoom

Attributes

Key Value
ABEC Tolerance1
Bearing MaterialSteel
Bearing TypeRound Bore, Spherical O.
Bore Dia.1.77 in
Bore Diameter1.77 in
Bore Size1.77 in
Bore Size Tolerance+/-0.0005 in
Bore Tolerance+0/-0.0005 in
CageSteel
Cage MaterialSteel
Dynamic Load Capacity7,938 lb
EAN4547359595536
EnclosureDouble sealed
Flange SizeNot Applicable
For Shaft Size1 49/64 in
ItemAgricultural Disc Beari.
LubricationShell Alvania #3
Manufacturer NameNTN
MaterialThrough hardened steel
Max. RPM470 RPM
Minimum Buy QuantityN/A
Minimum Temperature-40 Degrees F
Outside Dia.3.5433 in
Outside Dia. Tolerance+0/-0.0006 in
Outside Diameter3.395 in
Overall Width1.687 in
Product Group - BDIB00234
Seal MaterialNitrile Rubber
Static Load Capacity5,225 lb
Temp. Range-13 Degrees to 250 Deg.
Weight / Kilogram0
Width1.186 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG695775487.991In StockNtn1.6887.99 @ 1
thumbzoomBDI Express121676493.229224111In StockNTN93.22922411 @ 1
thumbzoomsustainablesupply.comC1652206132.611In StockNTN1.68132.61 @ 1
thumbzoomRaptor SuppliesAE2YQU177.42400651In StockNTN177.4240065 @ 1
thumbzoomMRO Supply275746377.941In StockNTN Bearing377.94 @ 1
