- mpnLPC11E14FBD48/401
- brandname: NXP
- manufacturername: NXP

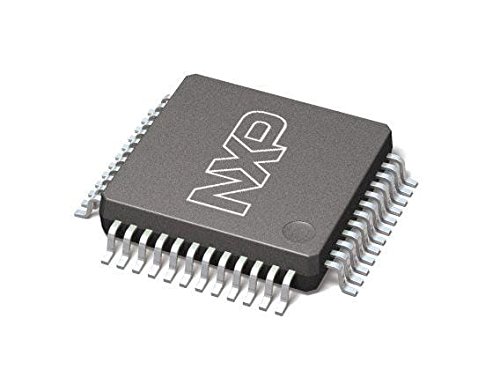

LPC11E14FBD48/401,
- Brand: NXP Semiconductors
- PartNumber: LPC11E14FBD48/401,
- PackageQuantity: 1
- Manufacturer: NXP Semiconductors
- Label: NXP Semiconductors
Attributes
| Key | Value |
|---|
| ADC Channels | ADC Channels |
| ADC Resolution | 10bit |
| ADCs | 1 (8 x 10 bit) |
| Brand | Brand |
| Category | Integrated Circuits (IC. |
| Connectivity | I?C, Microwire, SPI, SS. |
| Core Processor | ARM? Cortex?-M0 |
| Core Size | 32-Bit |
| Data Bus Width | 32bit |
| Data Converters | A/D 8x10b SAR |
| Description | LPC11E14 - Scalable 32-. |
| Detailed Description | ARM? Cortex?-M0 LPC11E1. |
| Device Core | Device Core |
| Digi-Key Part Number | 2156-LPC11E14FBD48/401,. |
| Dimensions | 7.1 x 7.1 x 1.45mm |
| EEPROM Size | 4K x 8 |
| Family Name | Family Name |
| Height | 1.45mm |
| Instruction Set Archite. | RISC |
| Length | Length |
| Manufacturer | NXP Semiconductors |
| Manufacturer Product Nu. | LPC11E14FBD48/401, |
| Maximum Frequency | Maximum Frequency |
| Maximum Number of Ether. | 0 |
| Maximum Operating Tempe. | +85 ?C |
| Mfr | NXP Semiconductors |
| Minimum Operating Tempe. | Minimum Operating Tempe. |
| Mounting Type | Surface Mount |
| Number of ADC Units | 1 |
| Number of CAN Channels | Number of CAN Channels |
| Number of Ethernet Chan. | Number of Ethernet Chan. |
| Number of I/O | 40 |
| Number of I2C Channels | Number of I2C Channels |
| Number of LIN Channels | Number of LIN Channels |
| Number of PCI Channels | 0 |
| Number of SPI Channels | Number of SPI Channels |
| Number of Timers | Number of Timers |
| Number of UART Channels | 0 |
| Number of USART Channels | 1 |
| Operating Temperature | -40?C ~ 85?C (TA) |
| Oscillator Type | External, Internal |
| Package | Bulk |
| Package / Case | 48-LQFP |
| Package Type | LQFP |
| Peripherals | Brown-out Detect/Reset,. |
| Pin Count | Pin Count |
| Product Status | Active |
| Program Memory Size | 32KB (32K x 8), Program. |
| Program Memory Type | FLASH, Program Memory T. |
| RAM Size | RAM Size, 10K x 8 |
| Series | LPC11E1x |
| Speed | 50MHz |
| Stock | Stock |
| Supplier Device Package | 48-LQFP (7x7) |
| Timer Resolution | Timer Resolution |
| Timers | Timers |
| Typical Operating Suppl. | Typical Operating Suppl. |
| USB Channels | USB Channels |
| Voltage - Supply (Vcc/V. | 1.8V ~ 3.6V |
| Width | 7.1mm |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Newark | 92T1336 | 2.66 | 1 | 50 | | NXP | | 2.66 @ 50 |
| Hotenda | H2310634 | 2.808 | 1 | 1624 | | NXP Semiconductors | | 2.808 @ 50 |
 | RS Delivers | 791-8122 | 2.8356 | 5 | 50 | | NXP | | 2.8356 @ 50 |
 | Digi-Key | 18448726 | 2.88009174312 | 109 | 310 | | NXP Semiconductors | | 2.88009174312 @ 109 |
