Ohmite 412-12E

B005T7A4E6

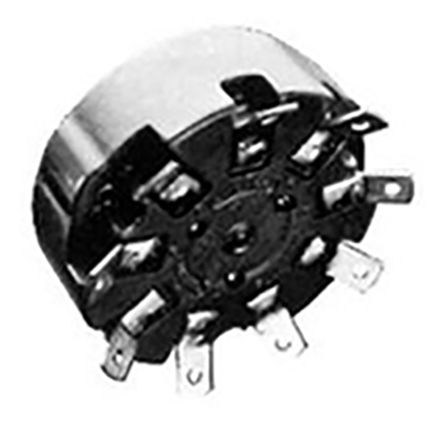

OHMITE 412-12E Switch, Rotary TAP, SP12T, 50A, 300V

OHMITE 412-12E Switch, Rotary TAP, SP12T, 50A, 300Vzoom

Attributes

Key Value
AC Current50 A
AC Voltage300 V
Actuator Length28.58mm
Actuator TypeFlatted Shaft ; 6.35 mm.
Angle of Throw330?, 30?
ApplicationElectromechanical
BrandOhmite
Case MaterialCeramic
CategorySwitches
Circuit per DeckSP12T
Contact Current Rating50 A
Contact Finish-
Contact FormSP12T
Contact MaterialSilver Alloy
Contact TimingNon-Shorting (BBM)
Contact TypeContact Type
Current Rating50 A
Current Rating (Amps)50A (AC/DC)
DC Current50 A
DC Voltage20 V
Depth2.437 in
Depth Behind Panel61.90mm
DescriptionSWITCH ROTARY 12POS 50A.
Detailed DescriptionRotary Switch 12 Positi.
Diameter106.36mm
Digi-Key Part Number412-12E-ND
Dimensions106.36 (Dia.) x 19.84 (.
Family SeriesOhmite Switches, 412 Se.
Features-
Gross Weight1.4 lbs
Height19.84mm
Index StopsFixed
IndexingFixed
Item Number412-12E
ManufacturerOhmite
Manufacturer Part Number412-12E
Manufacturer Product Nu.412-12E
Manufacturer Standard L.16 Weeks
MfrOhmite
Mounting Hole Size0.25 in, Mounting Hole .
Mounting TypePanel Mount
Net Weight1.4 lbs
Number of Contacts12
Number of Decks1
Number of Gangs1
Number of Poles1
Number of Poles per Deck1
Number of Positions12
Number of Switch Positi.12
Number of Taps per Gang12
PackageBulk
Panel Cutout Dimensions-
Product Series412
Product StatusActive
RoHSYes
Rotation Degrees330
Series412 Series, 412
Shaft Torque3-8 in-lbs
Special FeaturesHigh Power
Standards MetUL Listed
StockStock
Terminal TypeSolder
TerminationScrew
Termination StyleSolder Lug
TypeRotary
Voltage (AC)300 VAC
Voltage (DC)20 VDC
Voltage Rating20 V dc, 300 V ac, 300 .
Voltage Rating - AC300 V
Voltage Rating - DC20 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com412-12E193.9117OHMITE193.91 @ 1
Verical412-12E241.8411Ohmite241.84 @ 1
thumbzoomGalco412-12E-OHM262.415In StockOhmite1.4262.41 @ 5
Mouser588-412-12E264.1316Ohmite264.13 @ 1
thumbzoomDigi-Key4295791270.575In StockOhmite270.57 @ 5
thumbzoomNewark64K8801303.3216OHMITE303.32 @ 1
us.rs-online.com70024021329.675In StockOhmite329.67 @ 5
thumbzoomRS Delivers892-8622348.84845In StockOhmite348.8484 @ 5
thumbzoomRadwell412-12E370.01In StockOHMITE370.0 @ 1
AmazonSCB005T7A4E6384.61In StockOhmite384.6 @ 1
