Ohmite RLS10K

B005T9WZZU

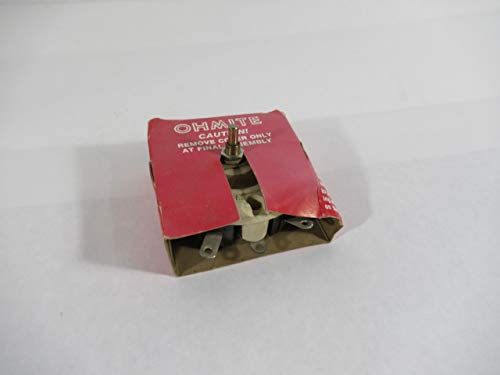

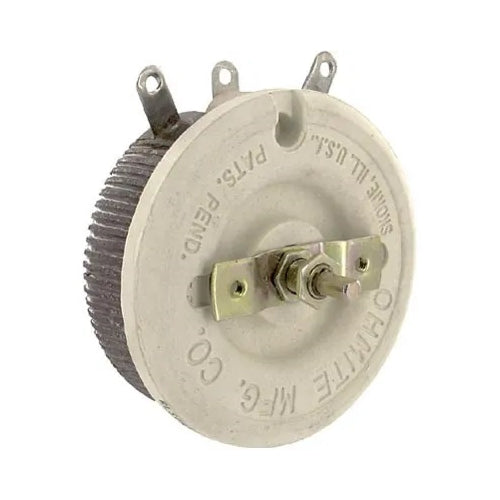

Ohmite RLS10K Rheostat 10K Ohms 150W 1200V Max Model L 0.122A

Ohmite RLS10K Rheostat 10K Ohms 150W 1200V Max Model L 0.122Azoom

Attributes

Key Value
Actuator Diameter0.250" (6.35mm)
Actuator Length0.875" (22.23mm)
Actuator TypeFlatted
Adjustment TypeUser Defined
Built in SwitchNone
Bushing Size.375-32 "
Bushing Thread3/8-32
CategoryPotentiometers, Variabl.
DescriptionPOT 10K OHM 150W WIREWO.
Detailed Description10k Ohm 1 Gang Linear P.
Diameter (in)4 "
Digi-Key Part NumberRLS10K-ND
Family SeriesOhmite Rheostats, RLS S.
Features-
Gross Weight1.14 lbs
Item NumberRLS10K
Lead TypeSolder
Locking ShaftNo
ManufacturerOhmite
Manufacturer Part NumberRLS10K
Manufacturer Product Nu.RLS10K
Manufacturer Standard L.22 Weeks
MfrOhmite
Mounting StylePanel Mount
Mounting TypePanel Mount
Net Weight1.1 lbs
Number of Gangs1
Number of Turns1
Operating Voltage1,200 V
Overall Length (in)2.88 "
PackageBulk
Power (Watts)150W
Product SeriesRLS
Product StatusActive
Resistance10 kOhm
Resistance (Ohms)10k
Resistive MaterialWirewound
RoHSNo
Rotation300?
SeriesL
Shaft Diameter (in)0.25 "
Shaft Length (in)0.88 "
Shaft Rotation Degrees300 ?
Shaft Torque.5-3 Ibs "
Shaft TypeSlotted
Size - BodyRound - 4.000" Dia (101.
TaperLinear
Temperature Coefficient-
Termination StyleSolder Lug
Tolerance?10%
Tolerance %10 %
Wattage150 W

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommarvac.com128565149.9511Ohmite149.95 @ 1
thumbzoomGalcoRLS10K-OHM155.691In StockOhmite1.14155.69 @ 1
thumbzoomDigi-Key4300632254.9645In StockOhmite254.964 @ 5
Newark13P6888308.993In StockOHMITE308.99 @ 1
