Omron E2E-X7D1-N 2M

B001EHO8NI

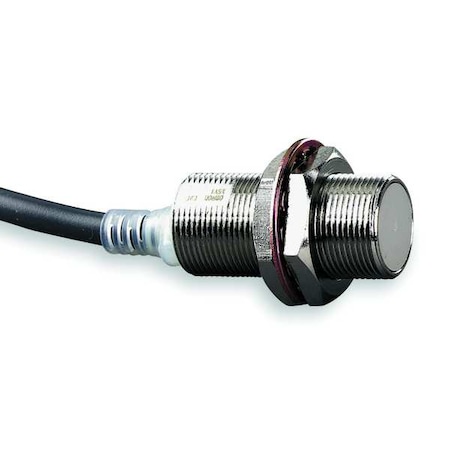

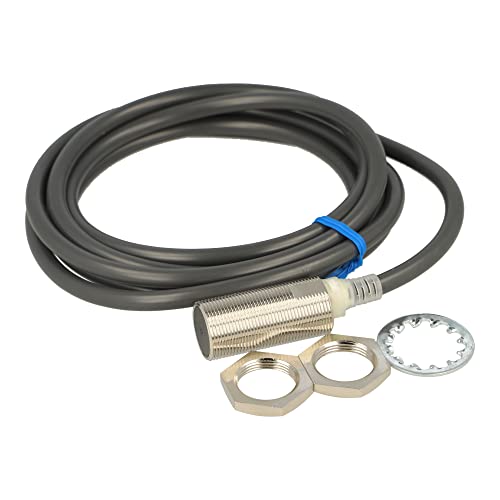

E2E-X7D1-N 2M | 708772 | OMRON Proximity Sensor, INDUCTIVE, M18, Shielded,

E2E-X7D1-N 2M | 708772 | OMRON Proximity Sensor, INDUCTIVE, M18, Shielded,zoom

Attributes

Key Value
Alternate Mfr Part Numb.E2EX7D1N
Base Product NumberE2E-X7
Basic Proximity Sensor .Metal
Body StyleCylindrical
Case MaterialNickel Plated Brass
CategorySensors, Transducers
DescriptionSENSOR PROX INDUCTIVE 7.
Description/Special Fea.LED Indication
Digi-Key Part NumberZ3189-ND
Dimensions1.69 in
Housing MaterialBrass (PBT Sensing Face)
IncludesInstruction Manual
IndicatorLED
Ingress ProtectionIP67
IP RatingIP67, 67
ItemCylindrical Proximity S.
Length41 mm
Length (Straight Wirewa.41 mm
ManufacturerOmron Automation and Sa.
Manufacturer Product Nu.E2E-X7D1-N
Manufacturer Standard L.20 Weeks
Material - BodyNickel-Plated Brass
Max. Current Load100mA
Max. Detecting Distance7 mm
Maximum Operating Tempe.70 C
Measurement Range7 mm
MfrOmron Automation and Sa.
Minimum Operating Tempe.-25 C
Mounting StyleFlush Shielded
Mounting TypeBracket ; DIN Rail Mount
NEMA Rating1, 12, 13, 4, 6
Operating Temp. Range-13 Degrees to 158 Deg.
Operating Temperature-25?C ~ 70?C
OutputNO
Output ModeNO
Output TypeNPN-NO, 2-Wire
PackageBox
Package / CaseCylinder, Threaded - M18
Primary TypeInductive Proximity Sen.
Product StatusActive
Proximity Sensing MethodInductive
Proximity Sensor Diamet.18 mm
Proximity Sensor Electr.2m Cable
Proximity Sensor Operat.500 Hz
Proximity Sensor Output.2 Wire
Proximity Sensor Power .12 to 24V DC
Proximity Sensor StyleCylindrical Proximity S.
Response Frequency500Hz
Sensing Distance0.276" (7mm)
Sensor TypeInductive
SeriesE2E, E2E Series
Shielded / UnshieldedShielded
ShieldingShielded
StandardsCE Compliance
Supply Voltage24 VDC
Switching Current100 mA
Switching Frequency0.5 kHz
TerminationPre-Wired
Termination StyleCable Leads
Voltage - Supply10V ~ 30V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNex InstrumentE2E-X7D1-N 2M48.01In Stock31Omron48.0 @ 1
HotendaH398121795.761In StockOmron Automation & Safety95.76 @ 1
Mouser653-E2E-X7D1-N2MOMS97.0213Omron97.02 @ 1
thumbzoomMRO Supply6163907102.971In StockOmron102.97 @ 1
thumbzoomZoroG2731032107.99128Omron0.35107.99 @ 1
thumbzoomCarlton Bates Company40312369593108.51In StockOMRON108.5 @ 1
Chip One Stop GlobalC1S541200346759112.01In StockOmron112.0 @ 1
AmazonTPB01LTCOH4M113.671In Stock2OMRON113.67 @ 1
thumbzoomkempstoncontrols.co.ukE2E-X7D1-N 2M117.52287313Omron117.522873 @ 1
thumbzoomDigi-Key407970128.4612Omron Automation and Safety128.46 @ 1
thumbzoomNewark09J1483133.615OMRON INDUSTRIAL AUTOMATION133.6 @ 1
thumbzoomsustainablesupply.comC1177106134.811In StockOmron0.35134.81 @ 1
us.rs-online.com70178081150.2160Omron Automation150.2 @ 1
thumbzoomRaptor SuppliesAB8YTR259.92913051In StockOMRON259.9291305 @ 1
